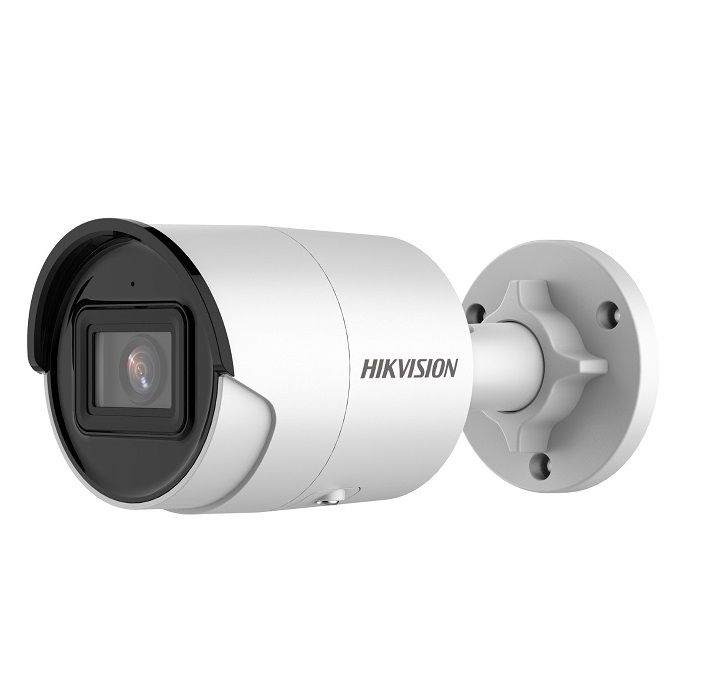

Camera IP hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2063G2-IU

HIKVISION DS-2CD2063G2-IU

  • MS 0017937
  • HIKVISION
Giá : 2,288,000 vnđ (Đã bao gồm VAT)

Camera IP hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2063G2-IU

Camera IP hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2063G2-IU

- Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.

- Độ phân giải: 6.0 Megapixel.

- Ống kính cố định: 4mm (đặt hàng 2.8/6mm).

- Tầm quan sát hồng ngoại: 40 mét.

- Chức năng chống ngược sáng 120dB WDR.

- Hỗ trợ các chức năng AGC, BLC, 3D DNR, HLC.

- Tính năng thông minh: Phát hiện xâm nhập, trèo rào; Phát hiện khuôn mặt; Báo hiệu con người/phương tiện.

- Khe cắm thẻ nhớ microSD 256GB (max).

- Tích hợp mic.

- Nguồn điện: 12VDC, PoE.

- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

Đặc tính kỹ thuật

ModelDS-2CD2063G2-IU
Camera
Image Sensor1/2.8-inch Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100, 000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day &NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
LensFixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
ApertureF1.6
Lens MountM12
Aperture TypeFixed
IR
IR RangeUp to 40 m
Wavelength850 nm
Smart Supplement LightYes
Supplement Light TypeIR
Video
Max. Resolution3200 × 1800
Video CompressionMain stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
Environment Noise FilteringYes
Audio CompressionG.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3/ AAC
Day/Night SwitchDay, Night, Auto, Schedule
Image SettingRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
SNR≥ 52 dB
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
Simultaneous Live ViewUp to 6 channels
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
User/HostUp to 32 users. 3 user levels: administrator, operator and user
Interface
Built-in MicrophoneYes
On-board StorageBuilt-in micro SD slot, up to 256 GB
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Hardware ResetYes
Intelligent
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Face DetectionYes
Perimeter ProtectionLine crossing detection, intrusion detection
Supports human and vehicle targets classification
General
General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
Power Supply12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current12VDC, 0.5A, max. 6W
PoE (802.3af, 36V to 57V), 0.2A to 0.13A, max. 7.2W
Ingress ProtectionIP67
MaterialAluminum alloy body
IR cover: plastic
Startup and Operating Conditions-30 °C to 60 °C. Humidity 95% or less (non-condensing)
DimensionsØ70 mm × 161.7 mm
Weight485g

- Bảo hành: 24 tháng.
