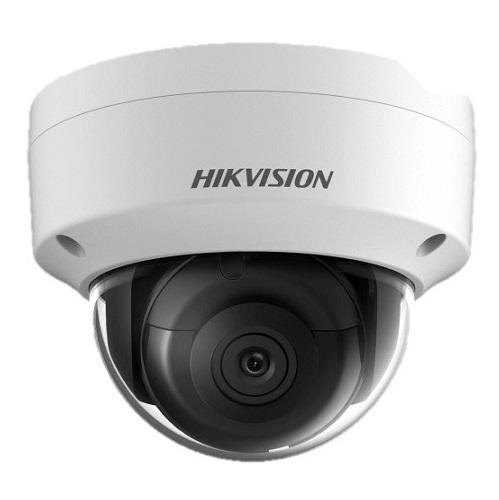

Camera IP Dome hồng ngoại 3.0 Megapixel HIKVISION DS-2CD2125FHWD-IS
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 1920×1080@50fps.
- Ống kính cố định 2.8mm (4/6/8/12mm tùy chọn)
- Độ nhạy sáng: 0.005Lux@F1.2.
- Tầm camera quan sát hồng ngoại: 30 mét.
- Chức năng chống ngược sáng WDR 120dB.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng chống nhiễu số 3D-DNR.
- Hỗ trợ khe cắm thẻ nhớ microSD 128GB (max).
- Hỗ trợ 4 kiểu phân tích hành vi.
- Chức năng phát hiện khuôn mặt, cổng âm thanh.
- Nguồn điện: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
- Kích thước: Φ111×82.4mm.
- Trọng lượng: 500g.
Đặc tính kỹ thuật
| Model | DS-2CD2125FHWD-IS |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR, Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Focus | Fixed |
| Lens Type | 2.8/4/6/8/12 mm |
| FOV | 2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°; 8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720); 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region Of Interest (ROI) | Support 1 fixed region for main stream and sub-stream separately |
| Audio | |
| Audio Compression | G722.1/G.711/G726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| On-Board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Face Detection | Yes |
| Exception Detection | Scene change detection |
| General | |
| Firmware Version | V5.5.80 |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Startup And Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC ± 25%, 6 W, PoE (802.3af, 36 V to 57 V, class 3), 7 W |
| Dimension | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Weight | Camera: 500 g (1.1 lb.) |
- Bảo hành: 24 tháng.
