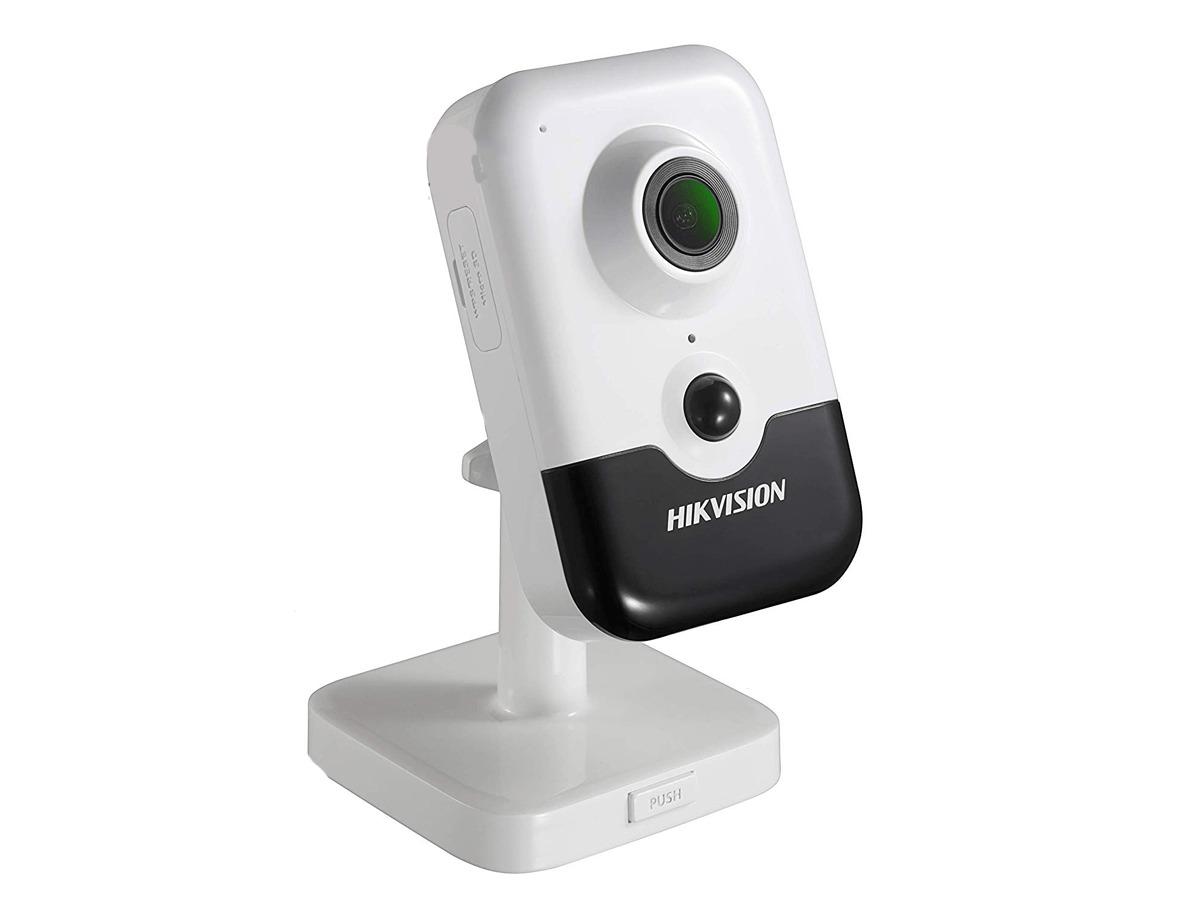

Camera IP Cube hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2423G0-I
- Cảm biến hình ảnh: 1/2.7 inch Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel (1920×1080@25fps).
- Ống kính cố định: 2.8mm.
- Độ nhạy sáng: 0.028Lux@F2.0.
- Tầm camera quan sát hồng ngoại: 10 mét.
- Cảm biến chính xác PIR phát hiện cơ thể người (10 mét).
- Chức năng quan sát Ngày và Đêm (IR-CUT).
- Chức năng chống ngược sáng WDR 120dB.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng giảm nhiễu số 3D-DNR.
- Khe cắm thẻ nhớ microroSD 128GB (max).
- Tích hợp âm thanh 2 chiều.
- Nguồn điện: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
- Kích thước: 102.8×65.2×32.6mm.
- Trọng lượng: 128g.
Đặc tính kỹ thuật
| Model | DS-2CD2423G0-I |
| Camera | |
| Image Sensor | 1/2.7 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8/4 mm |
| FOV | 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°,4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | 10 m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | Support H.264 and H.265 encoding |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | Support MicroSD/ SDHC/ SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| PIR | |
| PIR Angle | Horizontal: 90°, Vertical: 80° |
| PIR Range | 10 m |
| Interface | |
| Audio | 1 built-in mic, 1 built-in speaker, mono sound |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100Mbps self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, face detection |
| Face Detection | Yes |
| General | |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email |
| Firmware Version | 5.6.3 |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup And Operating Conditions | -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC ± 25%, PoE (802.3af, class 3) |
| Power Consumption And Current | 12VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W |
| Dimension | 102.8 mm × 65.2 mm × 32.6 mm (4.1' × 2.6' × 1.3') |
| Weight | 128 g |
- Bảo hành: 24 tháng.
