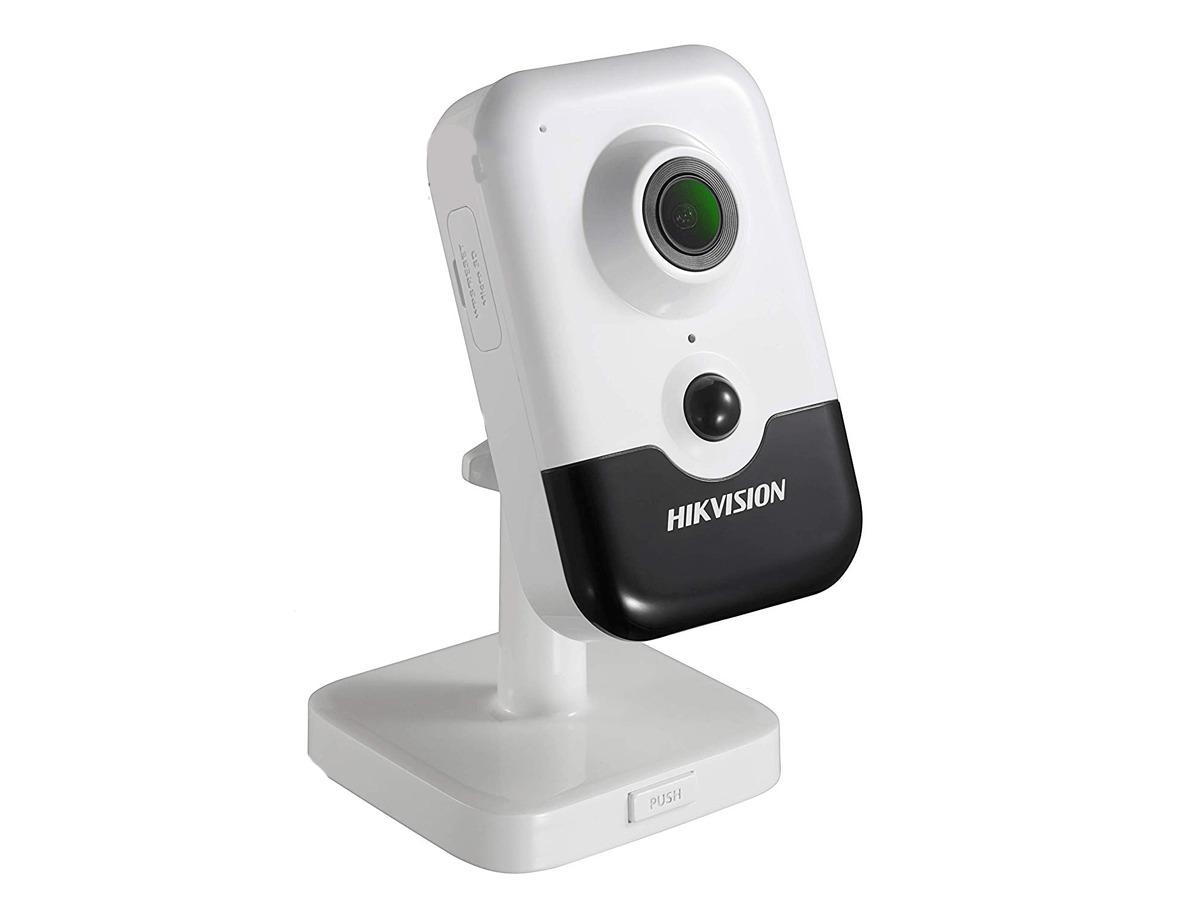

Camera IP Cube hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2443G0-I
- Cảm biến hình ảnh: 1/3 inch Progressive Scan CMOS.
- Độ phân giải: 4.0 Megapixel (2688 × 1520@25fps).
- Ống kính cố định: 2.8mm.
- Độ nhạy sáng: 0.01Lux@F1.2.
- Tầm quan sát hồng ngoại: 10 mét.
- Cảm biến chính xác PIR phát hiện cơ thể người (10 mét).
- Chức năng chống ngược sáng WDR 120dB.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng giảm nhiễu số 3D-DNR.
- Hỗ trợ khe cắm thẻ nhớ microSD 128GB (max).
- Chức năng phát hiện khuôn mặt.
- Tích hợp âm thanh 2 chiều.
- Nguồn điện: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
- Kích thước: 102.8×65.2×32.6mm.
- Trọng lượng: 128g.
Đặc tính kỹ thuật
| Model | DS-2CD2443G0-I |
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8/4 mm |
| FOV | 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°,4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | 10m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) | |
| Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | Support H.264 and H.265 encoding |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:, Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| PIR | |
| PIR Angle | Horizontal: 90°, Vertical: 80° |
| PIR Range | 10 m |
| Interface | |
| Audio | 1 built-in mic, 1 built-in speaker, mono sound |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, face detection |
| Face Detection | Yes |
| General | |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email |
| Firmware Version | 5.6.3 |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Startup And Operating Conditions | -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC ± 25%, PoE (802.3af, class 3) |
| Power Consumption And Current | 12VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W |
| Dimension | 102.8 mm × 65.2 mm × 32.6 mm (4.1' × 2.6' × 1.3') |
| Weight | Approx. 128 g (0.3 lb.) |
- Bảo hành: 24 tháng.
