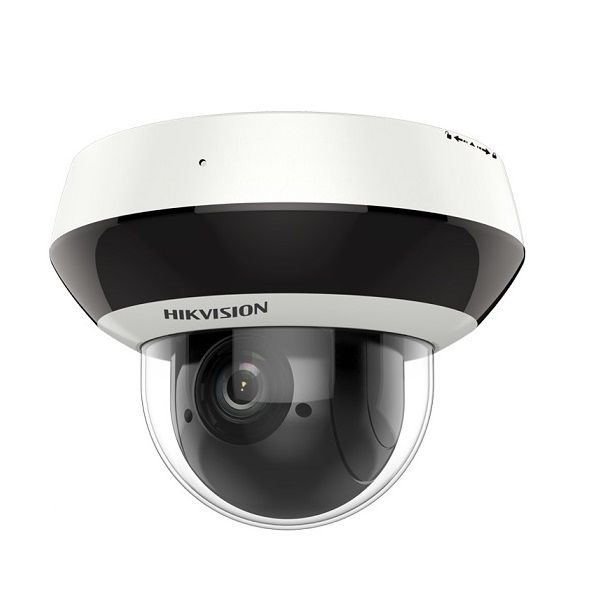

Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2DE2A404IW-DE3(C0)(S6)
- Cảm biến hình ảnh: 1/2.8 inch progressive scan CMOS.
- Độ phân giải: 2560 × 1440.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Công nghệ nhạy sáng Powered By DarkFighter Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR.
- Zoom quang: 4x.
- Zoom số: 16x.
- Tầm quan sát hồng ngoại: 20 mét.
- Xoay ngang: 0° ~ 355°.
- Xoay dọc: 0° ~ 90°.
- Chức năng chống ngược sáng 120dB WDR.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trọng nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Model | DS-2DE2A404IW-DE3(C0)(S6) |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day &Night | IR cut filter |
| Zoom | 4x optical, 16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Field of View | Horizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32° |
| Focus | Auto, semi-auto, manual |
| Aperture Range | Max. F1.5 |
| Zoom Speed | Approx. 2 s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850nm |
| PTZ | |
| Movement Range (Pan) | 0° to 355° |
| Pan Speed | Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s |
| Movement Range (Tilt) | 0° to 90° |
| Tilt Speed | Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Park Action | Preset |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, dome reboot, dome adjust |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Region Of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw/ G.711ulaw/ G.722.1/ G.726/ MP2L2/ PCM/AAC |
| Environment Noise Filtering | Yes |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| SNR | >52dB |
| Defog | Digital Defog |
| Image Stabilization | No |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Built-In Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Reset | Yes |
| Power Output | 12 VDC, max. 60 mA |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Smart Event | Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Alarm Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset) |
| General | |
| General Function | Mirror, password protection |
| Power Supply | 12 VDC, Max. 9.2 W; PoE (802.3af) |
| Ingress Protection | IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
| Startup and Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Dimensions | Ø 130.7 mm ×101.7 mm |
| Weight | 530 g |
- Bảo hành: 24 tháng.
