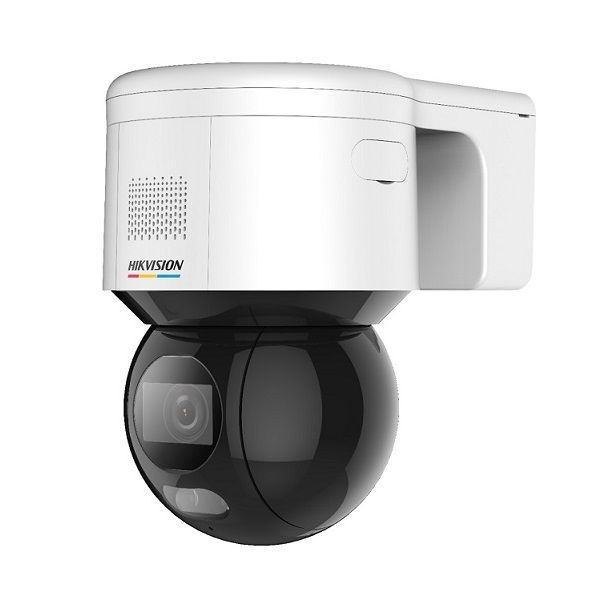

Camera IP Speed Dome 4.0 Megapixel HIKVISION DS-2DE3A400BW-DE(F1)(T5)
- Cảm biến hình ảnh: 1/1.8” progressive scan CMOS.
- Ống kính: 4mm.
- Chuẩn nén hình ảnh: H.265+/H.265.
- Độ nhạy sáng: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light.
- Đèn ánh sáng trắng lên đến 30 mét cho phép camera quan sát hình ảnh có màu vào ban đêm.
- Hỗ trợ chống báo động giả bằng thuật toán deep learning phân tích người và xe.
- Hỗ trợ face capture.
- Camera tích hợp loa ngoài & micro cho phép đàm thoại 2 chiều.
- Hỗ trợ thêm 1 audio in & 1 audio out.
- Chức năng chống ngược sáng WDR 120dB.
- Giảm nhiễu số 3D DNR.
- Chức năng chống chói sáng HLC.
- Chức năng chống rung điện tử EIS.
- Khe cắm thẻ nhớ microSD dung lượng lên đến 512GB.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
| Model | DS-2DE3A400BW-DE(F1)(T5) |
| Camera | |
| Image Sensor | 1/1.8 inch progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
| Max. Resolution | 2560 × 1440 |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day &Night | 24/7 colorful imaging |
| Digital Zoom | 16x |
| Lens | |
| Focal Length | 4mm |
| Field of View | Horizontal field of view: 88.7° Vertical field of view: 46.5° Diagonal field of view: 105.0° |
| Aperture Range | F1.0 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | White Light Distance: up to 30 m |
| PTZ | |
| Movement Range (Pan) | 350° |
| Pan Speed | configurable from 0.1° to 60°/s; preset speed: 60°/s |
| Movement Range (Tilt) | 0° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s. Preset speed: 100°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Power-off Memory | Yes |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Compression Standard | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Environment Noise Filtering | Yes |
| Image | |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| Defog | Digital defog |
| Regional Exposure | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 24 masks (8 masks for each scene) |
| SNR | >52 dB |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
| API | ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP |
| Simultaneous Live View | Up to 20 channels |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Interface | |
| Built-in Speaker | 1 built-in speaker |
| Power Output | 12 VDC; < 60 mA |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at) |
| On-board Storage | Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
| Event | |
| Basic Event | Video tampering alarm, motion detection, alarm input, alarm output, exception |
| Smart Event | Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection |
| Alarm Linkage | Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing |
| Deep Learning Function | |
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power Supply | 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 14 W (including max. 4 W for white light) |
| General Function | Mirror, password protection, watermark, IP address filter |
| Demist | Yes |
| Startup and Operating Conditions | Humidity: ≤ 90%, temperature: -30°C to 65°C |
| Protection | IP66 |
| Dimensions | 179.3 mm × 120 mm × 182 mm |
| Weight | 1.125kg |
- Bảo hành: 24 tháng.
