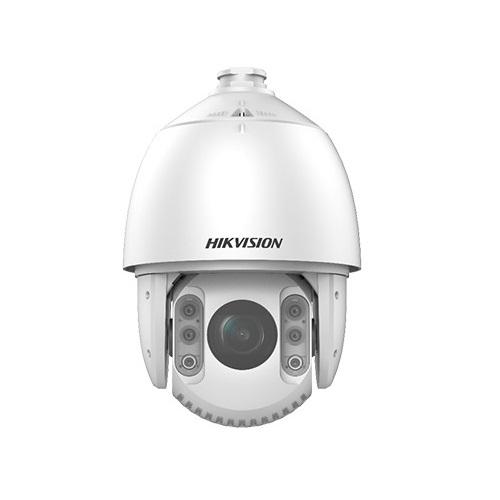

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2DE7232IW-AE(S5)
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Zoom quang: 32x.
- Zoom số: 16x.
- Tầm camera quan sát hồng ngoại: 200 mét.
- Chức năng quan sát ngày và đêm.
- Chức năng chống ngược sáng thực WDR.
- Chức năng chống chói sáng HLC.
- Chức năng giảm nhiễu số 3D-DNR.
- Chức năng chống sương mù Defog.
- Hỗ trợ công nghệ DarkFighter, hay còn gọi là camera siêu nhạy sáng chuyên dành cho giám sát trong bóng tối.
- Phân loại chính xác mục tiêu người và phương tiện, cảnh báo và theo dõi được liên kết dựa trên thuật toán học.
- Chụp khuôn mặt: Chụp cùng lúc 5 khuôn mặt.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 24VAC, Hi-PoE.
- Kích thước: 220 × 353.4 mm.
- Trọng lượng: 5kg.
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
Features
- 7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome
- 1/2.8 inch Progressive Scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
32× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
- Up to 200 m IR distance
- Accurate human and vehicle target classification, alarm, and linked tracking based on deep learning algorithm
- Face capture: Up to 5 faces captured at the same time.
Đặc tính kỹ thuật
| Model | DS-2DE7232IW-AE(S5) |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Min. Illumination | 0 Lux with IR,color: 0.005Lux @ (F1.2, AGC ON), B/W: 0.001Lux @ (F1.2, AGC ON) |
| Shutter Speed | 1/1s-1/30000s |
| Slow Shutter | Yes |
| Focus | semi-auto;manual;auto |
| Day & Night | ICR |
| Day/Night Switch | day, night, auto, scheduled-switch |
| BLC | Yes |
| WDR | 120 dB WDR |
| HLC | Yes |
| 3D DNR | Yes |
| Defog | Yes |
| EIS | Yes |
| Regional Exposure | Yes |
| Image Settings | Saturation;brightness;contrast;sharpness |
| White Balance | MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 32x |
| Privacy Mask | up to 24 masks; mosaic mask; mask color, configurable; polygon region |
| SNR | ＞52dB |
| Lens | |
| Focal Length | 4.8 mm to 153 mm, 32× Optical |
| Zoom Speed | approx.4.2s |
| FOV | Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele) |
| Aperture | F1.2 |
| Illuminator | |
| IR Distance | 200 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-Off Memory | Yes |
| Park Action | preset; patrol scan; pattern scan; auto scan; tilt scan; random scan; frame scan; panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | preset ;auto scan; random scan; frame scan; patrol scan; pattern scan;panorama scan; tilt scan; dome reboot; dome adjust; aux output |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Stream Type | main stream;sub-stream;third stream |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265; H.264; MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | baseline profile;main profile;high profile |
| H.265 Type | main profile |
| H.264+ | Yes |
| H.265+ | Yes |
| SVC | Yes |
| ROI | dynamic face tracking;;fixed region;main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Compression | G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM |
| Audio Bit Rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps |
| Audio Sampling | MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 |
| Rate | kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
| Smart Features | |
| Face Capture | Yes |
| Basic Event | audio exception; motion detection; alarm input; alarm output; video tampering alarm; exception |
| Smart Event | intrusion detection; line crossing detection; region entrance detection; region exiting detection; unattended baggage detection; object removal detection |
| Smart Tracking | manual tracking;event tracking;auto-tracking |
| Smart Record | ANR; Dual-VCA |
| Alarm Linkage | smart tracking; preset; patrol scan;pattern scan; memory card video recording;alarm output; sending email; notify surveillance center; upload to FTP |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS);;ANR |
| Protocols | IPv4/IPv6; HTTP; HTTPS; 802.1x;Qos; FTP;SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTCP; RTP; TCP/IP; UDP ;IGMP; ICMP; DHCP; PPPoE; Bonjour |
| API | ISAPI;Hikvision SDK;Hik-Connect;ONVIF (Profile S, Profile G, Profile T);ISUP |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Smooth Streaming | Yes |
| Security Measures | Authenticated username and password;MAC address binding;HTTPS encryption;802.1X |
| Client | iVMS-4200;Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-Board Storage | support microSD/microSDHC/microSDXC cards; up to 256 GB |
| Alarm Input | 2 alarm inputs |
| Alarm Output | 1 alarm output |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| General | |
| Supply | 24 VAC, Hi-PoE |
| Power | Max. 42 W, including max. 10 W for heater and |
| Consumption And Current | max. 18 W for supplement light |
| Operating | humidity lower than 90%RH ; temperature: -30℃ |
| Conditions | to 65℃ (-22°F to 149°F) |
| Reset | Yes |
| Protection | IP66 Standard, IK10 (excluding glass window) , 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | ADC 12, PC, PC+10%GF |
| Dimensions | 220 mm × 353.4 mm |
| Weight | 5 kg |
- Bảo hành: 24 tháng.
