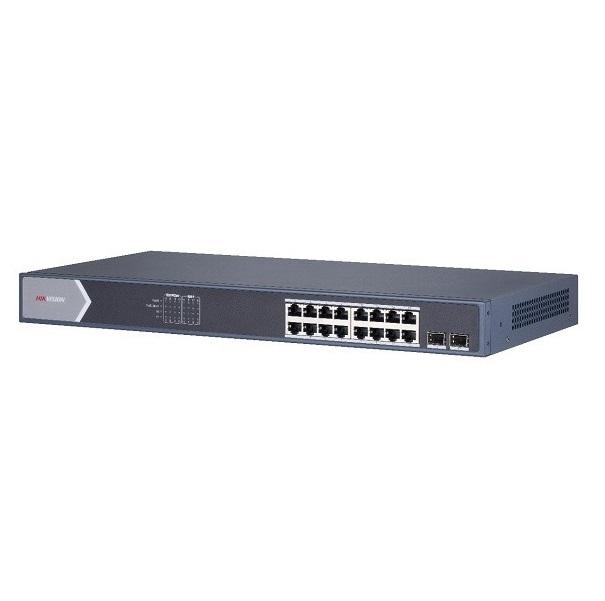

16-Port Gigabit Unmanaged PoE Switch HIKVISION DS-3E0518P-E/M
- HIKVISION DS-3E0518P-E/M switch is a layer 2 PoE network switch, providing 16 × Gigabit PoE ports and 2 × Gigabit SFP fiber optical ports. On top of high-performance access, the switch provides advanced PoE power technology to guarantee the stable network upload of the adaptive data.
- 16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- PoE power management.
- Gigabit network access.
- Wire-speed forwarding
- Store-and-forward switching.
- Solid high-strength metal shell.
Specification
| Model | DS-3E0518P-E/M |
| Network parameters | |
| Port number | 16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward switching |
| MAC address table | 8 K |
| Switching capacity | 36 Gbps |
| Packet forwarding rate | 26.784 Mpps |
| Internal cache | 4.1 Mbits |
| PoE power supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cable 1/2/3/6 provide power supply. |
| PoE port | Ports 1 to 16 |
| Max. port power | 30 W |
| PoE power budget | 125 W |
| Max. power consumption | 150 W |
| General | |
| Shell | Metal material, no fan equipped. |
| Net weight | 2.500 kg (5.51 lb) |
| Gross weight | 3.570 kg (7.87 lb) |
| Dimension (L × H × D) | 440 mm × 44 mm × 220.8 mm |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 100 to 240 VAC, 50/60 Hz, 2.5 A (Max) |
| Power consumption in idle | 25 W |
- Bảo hành: 24 tháng.
