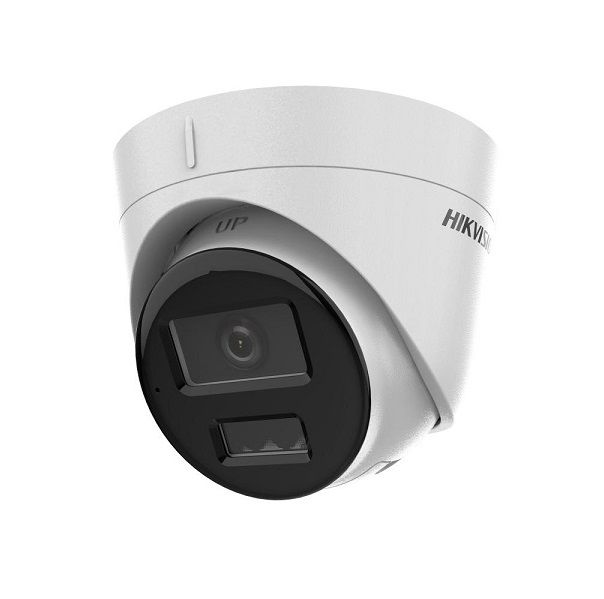

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD1321G2-LIU
- Camera IP phát hiện người và phương tiện cùng chế độ đèn thông minh.
- Cảm biến hình ảnh: 1/2.9 inch progressive scan CMOS.
- Độ phân giải tối đa: 2.0 megapixels.
- Độ nhạy sáng tối thiểu: Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR.
- Chuẩn nén: H.265, H.265+, H.264, H.264+.
- Ống kính: 2.8/4mm.
- Tầm quan sát hồng ngoại: 20 mét.
- Tầm quan sát ánh sáng trắng: 15 mét.
- Hỗ trợ các tính năng camera: Chống ngược sáng DWDR, BLC, 3D DNR.
- Hỗ trợ chế độ đèn thông minh Smart Hybrid Light.
- Tính năng phát hiện người và phương tiện.
- Tích hợp Micro.
- Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 12V/PoE chuẩn 802.03af.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.9 inch Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.2 |
| DORI | |
| DORI | 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | IR: up to 20 m White Light: up to 15 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Network | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Privacy Mask | 1 programmable polygon privacy mask |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes, 1 built-in microphone |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target type (human)), exception |
| Linkage | Notify surveillance center, send email, trigger capture |
| General | |
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Plastic |
| Dimension | Ø 109.9 mm × 103.6 mm |
| Weight | Approx. 300 g |
| Storage Conditions | -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
- Bảo hành: 24 tháng.
