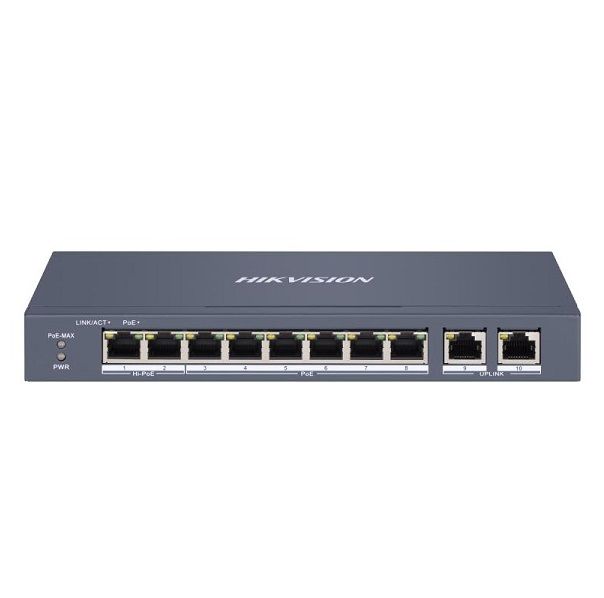

8 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1310HP-EI
- Hỗ trợ 8 × cổng PoE RJ45 100Mbps, 2 × cổng mạng RJ45 gigabit.
- Chuẩn IEEE 802.3at/af/bt cho các cổng PoE.
- Quản lý cấu trúc mạng và đẩy thông báo cảnh báo.
- Bảo vệ chống sét 6kV cho các cổng PoE.
- Truyền tải tầm xa lên đến 300m.
- Camera AF/AT có thể đạt tới 300m trong chế độ mở rộng.
Thông số kỹ thuật
| General | |
| Shell | Metal material, IP40 |
| Net Weight | 0.550 kg |
| Gross Weight | 0.950 kg |
| Dimensions (W × H × D) | 217.6 mm × 27.8 mm × 103.35 mm |
| Operating Temperature | 0 °C to 40 °C (0 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54 V DC, 2.22 A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 4 W |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port |
| MAC Address Table | 16 K |
| Switching Capacity | 9.2 Gbps |
| Packet Forwarding Rate | 6.84 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | Hi-PoE: Ports 1 to 2,PoE: Ports 3 to 8 |
| Max. Port Power | Port 1 to 2: 90 W |
| Ports 3 to 8:30 W | |
| PoE Power Budget | 110 W |
| Software Function | |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating. |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
- Bảo hành: 24 tháng.
