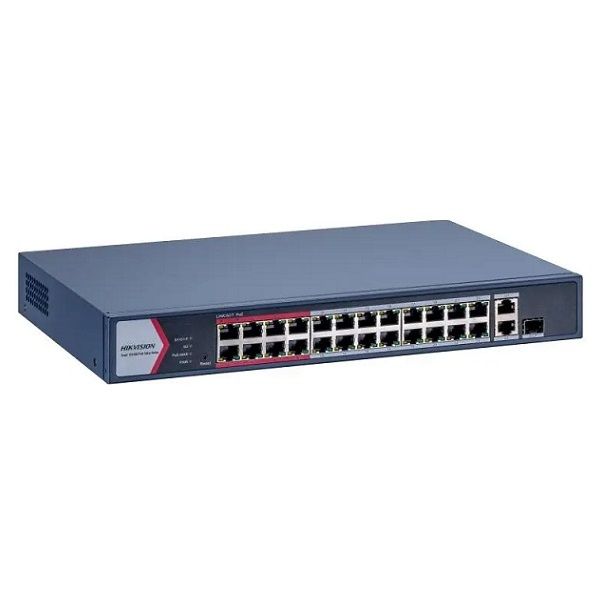

24 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1326P-EI/M
- 24 cổng PoE 10/100Mbps, 1 cổng combo Gigabit, 1 cổng RJ45 Gigabit.
- Chuẩn IEEE 802.3at/af cho các cổng PoE.
- Quản lý cấu trúc mạng, cảnh báo tự động, theo dõi tình trạng mạng.
- Bảo vệ chống sét 6kV cho các cổng PoE.
- Camera AF/AT có thể hoạt động trong phạm vi lên đến 300m ở chế độ mở rộng.
Thông số kỹ thuật
| Network Parameters | |
| Port Type | RJ45 port, full duplex, MDIMDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| Ports | 24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port |
| High Priority Ports | Ports 1 to 8 |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default), Extend mode |
| MAC Address Table | 16K |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 230 W |
| Software Function | |
| Device Maintenance | Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration. |
| Port Configuration | Port rate configuration, flow control, and 1-8 high-priority ports enabling |
| PoE Configuration | Support PoE configuration, and 1-24 ports PoE watchdog. |
| Link Aggregation | Support G1, G2 port static link aggregation |
| General | |
| Shell | Metal material |
| Weight | 2.13 kg |
| Dimensions (W × H × D) | 335.00 mm × 44.50 mm × 226.00 mm |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 4 A |
| Max. Power Consumption | 250 W |
- Bảo hành: 24 tháng.
