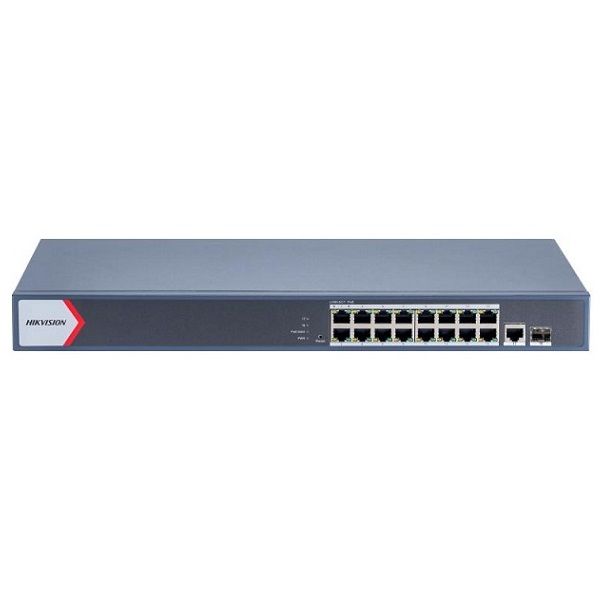

16 Port Gigabit Smart PoE Switch HIKVISION DS-3E1518P-EI
- Hỗ trợ 16 × cổng PoE RJ45 Gigabit, 1 × cổng RJ45 Gigabit, 1 × cổng quang Gigabit.
- Total PoE power budget: 230W.
- Quản lý đám mây thống nhất cho các hệ thống an ninh.
- Quản lý cấu trúc mạng trực quan.
- Khắc phục sự cố từ xa.
- Truyền tải PoE tầm xa lên đến 300m.
- Bảo vệ chống sét 6kV.
Thông số kỹ thuật
| General | |
| Shell | Metal material |
| Net Weight | 2.85 kg |
| Gross Weight | 3.05 kg |
| Dimensions (W × H × D) | 440.0 mm × 220.8 mm × 44.0 mm |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 V AC, 50/60 Hz, Max. 4 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 250 W |
| Power Consumption in Idle | 20 W |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table | 8K |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Internal Cache | 4.1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 230 W |
| Software Function | |
| Long Range | Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 16: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 16: auto detect and restart the cameras that do not respond. |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017) |
| Safety | CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
- Bảo hành: 24 tháng.
