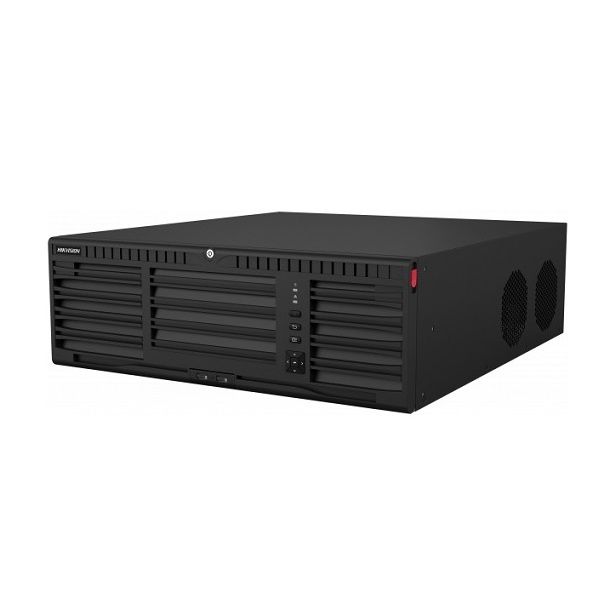

Đầu ghi hình camera IP 128 kênh HIKVISION DS-96128NI-M16
- Đầu ghi hình hỗ trợ 128-ch camera IP đầu vào.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Tương thích với tín hiệu ngõ ra: 2-ch HDMI, 2-ch VGA.
- Băng thông đầu vào: 400Mbps.
- Băng thông đầu ra: 400Mbps.
- 16 kênh ngõ vào báo động, 9 kênh ngõ ra báo động.
- Hỗ trợ 16 ổ cứng SATA với dung lượng lưu trữ 14TB cho mỗi ổ.
- Hỗ trợ 4 cổng USB (2x USB 2.0, 2x USB 3.0) .
- Nguồn điện: 100 to 240 VAC, 50 to 60 Hz.
Đặc tính kỹ thuật
| Video and Audio | |
| IP Video Input | 128-ch |
| Incoming Bandwidth | 400 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 1 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Network | |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID | |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Auxiliary Interface | |
| Serial Interface | 1 RS-485 (full-duplex), 1 RS-232 |
| SATA | 16 SATA interfaces supporting hot-plug |
| eSATA | 1 eSATA interface |
| Capacity | Up to 14 TB capacity for each disk |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. |
| DC 12V | 12 VDC, 1 A power output |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz, redundant power supply |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 3U chassis |
| Dimension (W × D × H) | 445 × 496 × 150 mm |
| Weight | ≤ 12.5 kg (without HDD) |
| Certification | |
| Obtained Certification | CE, FCC |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
- Bảo hành: 24 tháng.
