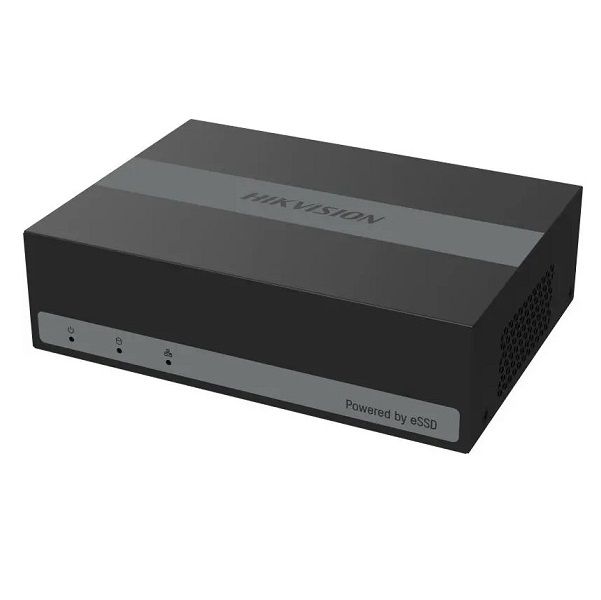

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION DS-E04HGHI-E

HIKVISION DS-E04HGHI-E

  • MS 0017684
  • HIKVISION
Giá : 1,350,000 vnđ (Đã bao gồm VAT)

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION DS-E04HGHI-E

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION DS-E04HGHI-E

- Hỗ trợ video đầu vào: HDTVI/AHD/CVI/CVBS/IP.

- Hỗ trợ 1 kênh camera IP.

- Tương thích với tín hiệu nhõ ra: 1-ch HDMI, 1-ch VGA.

- Tiêu chuẩn nén hình ảnh: H.265 Pro/H.265.

- Tích hợp ổ cứng eSSD với dun lượng 1TB.

- Motion Detection 2.0: Thuật toán phân tích người và xe chống báo động giả.

- Kích thước (W × D × H): 151 × 121 × 46 mm.

- Trọng lượng: ≤0.5kg.

Đặc tính kỹ thuật

Motion Detection 2.0
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
Video CompressionH.265 Pro/H.265
Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame RateMain stream: 1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)
Note: 1080p Lite/720p is 15 fps by default
Sub-stream: 4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Stream TypeVideo, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Audio CompressionG.711u
Audio Bitrate64 Kbps
Video and Audio
IP Video Input1-ch
Up to 1080p resolution
Support H.265+/H.265 IP cameras
Analog Video Input4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input4-ch via coaxial cable
Audio Output1-ch via HDMI
Synchronous playback4-ch
Network
Total Bandwidth64 Mbps
Incoming bandwidth: 4 Mbps
Remote Connection32
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
CapacityBuilt-in 1024 GB eSSD (960 GB available)
Note:
The device can store about 8 weeks videos for 4-ch analog cameras (default parameters),
this estimation is for reference only.
USB InterfaceRear panel: 2 × USB 2.0
General
Power Supply12 VDC, 1 A
Consumption≤ 5.4 W (with eSSD)
Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
Working Humidity10% to 90%
Dimension (W × D × H)151 × 121 × 46 mm
Weight≤ 0.5 kg

- Bảo hành: 24 tháng.
