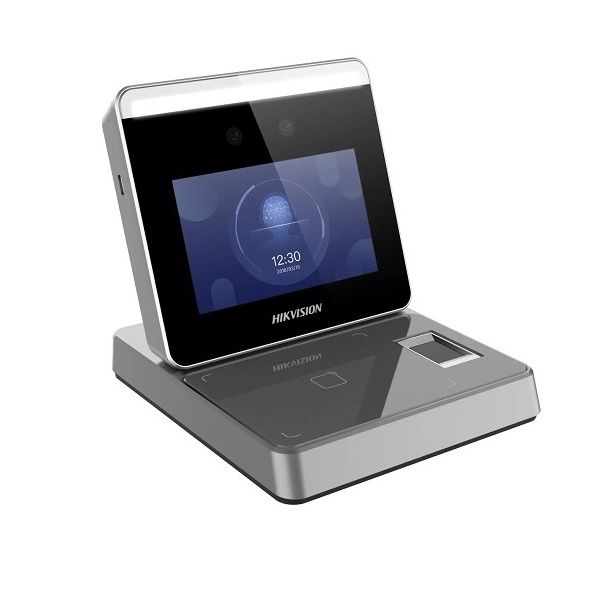

Enrollment Station HIKVISION DS-K1F600U-D6E-F
- 3.97-inch LCD touch screen for face enrollment, parameters configuration, live view, etc.
- 2MP wide-angle dual-lens.
- Face anti-spoofing, Face enrollment distance: 0.3m to 1.5m.
- Deep learning algorithm.
- 2000 user capacity, 2000 face capacity, 20000 card capacity, and 20000 fingerprint capacity.
- Enrolls data via the device and transmits the data from the device to the platform via TCP/IP/Type C USB interface; Enrolls data remotely via the client software.
- Stand-alone operation: Manage, search and set device data after logging in the device locally.
Thông số kỹ thuật
| System | |
| Operating system | Linux |
| Display | |
| Screen size | 3.97-inch |
| Operation method | Touch |
| Type | Capacitive |
| Resolution | 800 × 480 |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| WDR | Support |
| Network | |
| Wired network | TCP/IP |
| Wi-Fi | Support |
| Interface | |
| USB | Supports 1 USB interface and 1 Type C USB interface (Type C USB interface is used for communicating with the platform.) |
| Capacity | |
| User capacity | 2000 |
| Face capacity | 2000 |
| Fingerprint capacity | 20,000 (10 fingerprints per person) |
| Card capacity | 20,000 (The displayed capacity on the device screen varies according to the configured enrollment rules) |
| Event capacity | 2000 offline enrollment records |
| Authentication | |
| Face enrollment distance | 0.3 m to 1.5 m |
| Card type | EM card,Mifare 1 card,DESfire card,Felica card |
| Card reading frequency | 13.56MHz, 125KHz |
| Card reading distance | 0 to 5 cm |
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Time synchronization | Support |
| General | |
| Power supply | 12 VDC, 15 W, Round |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10％ to 90％ |
| Dimensions | 121.6 mm × 137.9 mm × 125 mm |
| Installation | Base mounting |
| Application environment | Indoor |
- Bảo hành: 24 tháng.
