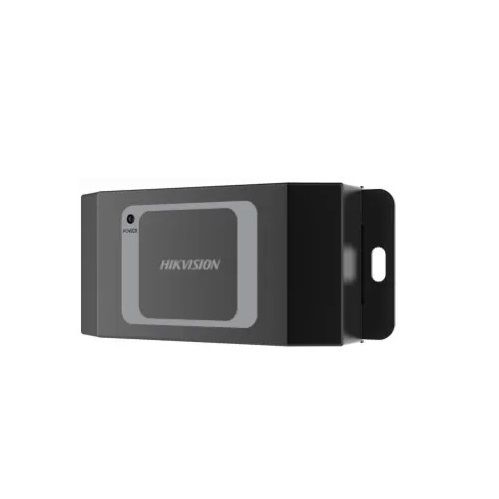

Secure Door Control Module HIKVISION DS-K2M061

HIKVISION DS-K2M061

  • MS 0017602
  • HIKVISION
Giá : 800,000 vnđ (Đã bao gồm VAT)

Secure Door Control Module HIKVISION DS-K2M061

Secure Door Control Module HIKVISION DS-K2M061

- DS-K2M061 Secure Door Control Module is the interlayer between the access control terminal and the lock, including the door magnetic, the lock, the exit button and so on. It can be applied to keep the door closed when the door is damaged.

- Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed.

- Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal.

- Supports tampering alarm.

- Supports RS-485 communication indicators to show the communication status.

- 4-ch DIP switch supporting ID No. configuration.

- Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card

- Fire interface and exit button linkage.

Specification

Interface
Lock control1
Exit button1
Door contact input1
Alarm input2
Alarm output1
RS-4851
Wiegand1
General
Indicator1 for power supply
Power supply12 VDC
Working temperature-40 °C to 70 °C
Working humidity0% to 90%
Dimensions48 mm × 115 mm × 26 mm
InstallationWall Mounting

- Bảo hành: 24 tháng.
