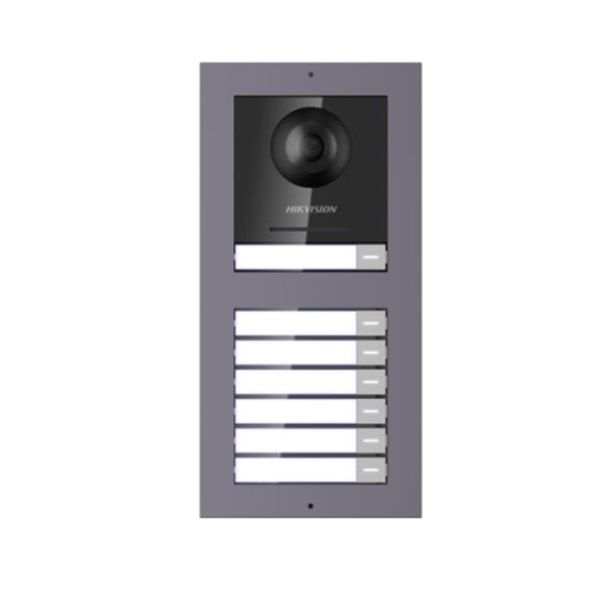

Combo camera chuông cửa IP HIKVISION DS-KIS27
- Combo camera chuông cửa IP HIKVISION DS-KIS27 bao gồm: Camera chuông cửa IP HIKVISION DS-KD8003-IME1 + Video Intercom Nametag Module DS-KD-KK + Accessory Package DS-KD-ACF2/Plastic.
- Camera độ phân giải 2MP, 1920 x 1080.
- Có hỗ trợ hồng ngoại.
- Góc nhìn ngang 180°, dọc 96°.
- Gồm 7 nút bấm cho 7 căn hộ riêng biệt.
- Cổng kết nối Ethernet 10/100M.
- Hỗ trợ kết nối với 2 khóa điện (khóa từ).
Đặc tính kỹ thuật
| DS-KD8003-IME1 | |
| System parameters | - Processor: Embedded MCU Processor - Operation system: Embedded Linux operation system - Operation method: Physical button |
| Video Parameters | - Camera: Low illumination 2 MP HD IR camera - Video Compression Standard: H.264 - Resolution: + Main stream: 1920 × 1080 + Sub stream: 720 × 480 - BLC: Supported - DNR: Supported - WDR: Supported - Anti-flicker: 50 Hz, 60 Hz - Field of view: Horizontal: 180°; Vertical: 96° |
| Audio parameters | - Audio input: Built-in omnidirectional microphone - Audio output: Built-in loudspeaker (More than 85dB within 20 cm) - Audio compression standard: G.711 U - Audio compression Rate: 64 Kbps - Audio quality: Noise suppression and echo cancellation |
| Light supplement | Light supplement mode: IR supplement |
| Network parameters | - Ethernet: 10/100 Mbps self-adaptive Ethernet - Network protocol: TCP/IP, RSTP |
| Alarm parameters | - Tampering alarm: 1 |
| Interfaces | - Module connecting: 1 - Door contact input: 2 - Exit button input: 2 - I/O input: 4 - Debug: 1 - Door control: 2, breakdown voltage: 36 V |
| Performances | - Card capacity: Max. 10000 - User capacity: Max. 2000 - Linked Indoor station: Max. 500 - Linked sub door station: Max. 16 - Linked doorphone: Max. 8 - Protocol: ISAPI, RTSP, STMP, SNMP - Unlock door: Unlock by presenting cards, unlock via Client Software, unlock via App, unlock via indoor station |
| General | - Physical button: 1 - Power supply: 12 VDC/PoE (IEEE 802.3af) - Power consumption: 4W - Working temperature: -40° C to +55° C(-40° F to 131° F) - Working humidity: 10% to 95% - Installation: Flush mounting, surface mounting - Dimension: 98 mm × 99.8 mm × 43.9 mm - Weight: 554g (with packaging)/ 375 g (without packaging) |
| DS-KD-KK | |
| System parameters | - Processor: Embedded MCU Processor |
| Interfaces | - Module connecting: 2 (1 input, 1 output) - Debug: 1 |
| General | - Physical button: 6 - DIP switch: 8 - Power supply: Powered by DS-KD8003-IME1 - Power consumption: 0.8 W - Working temperature: -40° C to +55° C(-40° F to 131° F) - Working humidity: 10% to 95% - IP protection level: IP65 - Installation: Flush mounting, surface mounting - Dimension 98.2 mm × 100.2 mm × 33.7 mm - Weight: 438 g (with packaging)/ 190 g (without packaging) |
| DS-KD-ACF2/Plastic | |
| Material | Cover: Aviation Aluminum Gang Box: Plastic |
| Working temperature | -40° C to +55° C(-40° F to 131° F) |
| Working humidity | 10% to 95% |
| Dimension | Cover: 236 × 124 × 4 mm Gang Box: 237 × 135 × 56 mm |
| Weight | 588 g (with packaging) 290 g (without packaging) |
- Bảo hành: 24 tháng.
