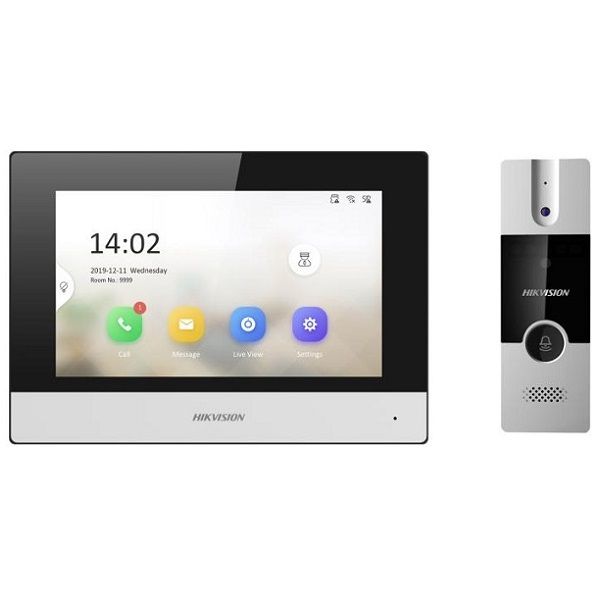

Bộ Kit chuông cửa có hình Hybrid HIKVISION DS-KIS302-P
- Bộ Kit chuông cửa có hình Hybrid (trạm IP trong nhà và trạm cửa analog 4 dây), bao gồm: DS-KB2411T-IM và DS-KH6320-WTDE1.
- Điều khiển thân thiện với người dùng qua màn hình cảm ứng tiện lợi.
- Quản lý dễ dàng qua ứng dụng di động Hik-Connect.
- Lựa chọn hiệu quả về chi phí hơn với chuông cửa analog.
- Dễ dàng lắp đặt vì chuông cửa không cần nguồn cấp riêng.
- Bộ nguồn tiêu chuẩn châu Âu đi kèm (vui lòng ghi rõ tiêu chuẩn khác khi đặt hàng).
Thông số kỹ thuật
| Door station | |
| Resolution | 1920 x 1080 |
| FOV | Horizontal: 66.2°, Vertical: 37.2° |
| Door station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Door station | |
| I/O output | 1 relay output |
| Four-wire | 1 for 4-wire interface |
| Door station | |
| Power supply | 12V DC |
| Power consumption | Max. 5W |
| Working temperature | -10° C to 55° C (14° F to 131° F) |
| Working humidity | 10% to 90% |
| Dimensions | 135.14 mm × 49.6 mm × 41.93 mm |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| RAM | 128 MB |
| ROM | 32 MB |
| Indoor station | |
| Size | 7-inch colorful TFT screen |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT screen |
| Resolution | 1024 × 600 |
| Indoor station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression Rate | 64 Kps |
| Audio compression standard | G.711 U G.711 A |
| Volume adjustment | Adjustable |
| Audio quality | Noise suppression and echo cancellation |
| Indoor station | |
| Linked IPC capacity | 16 |
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 2 analog doorphones, 15 IP doorphones Max. |
| Indoor station | |
| Wired network | 10/100 Mbps self-adaptive |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Indoor station | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 2-ch alarm inputs |
| Alarm output | 2 |
| Power input | 1, 12 VDC |
| TF card | Max to 128 G, SD 2.0 or lower version |
| Four-wire interface | 2 |
| Indoor station | |
| Power supply | IEEE802.3af, Standard PoE,12V DC |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × H × D) | 200 mm × 140 mm × 23.6 mm (7.9' × 5.5' × 0.9') |
| Installation | Surface mounting |
| Application environment | Indoor |
| Weight | 355g |
- Bảo hành: 24 tháng.
