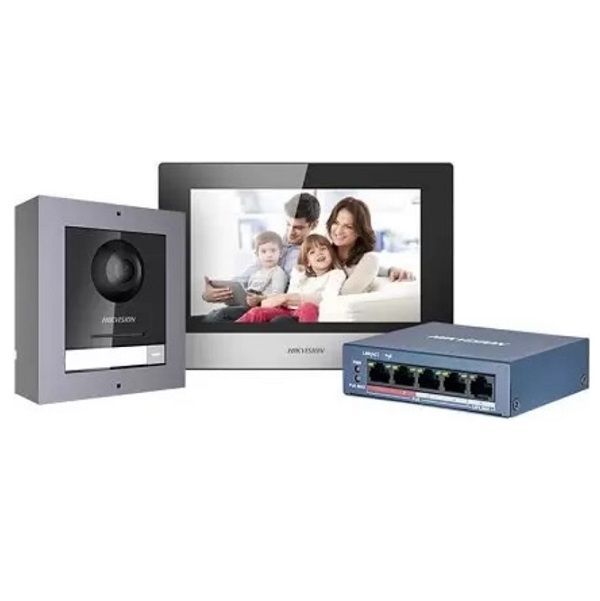

Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS602(B)
- Bộ Kit chuông cửa IP dành cho biệt thự hoặc nhà ở, có một nút gọi, bao gồm: DS-KD8003-IME1(B)/Surface × 1, DS-KH6320-WTE1 × 1, switch PoE tiêu chuẩn 4 cổng × 1, thẻ TF 16GB × 1.
- Hỗ trợ lưu trữ tin nhắn và hình ảnh chụp được trong thẻ TF.
- Điều khiển thuận tiện qua ứng dụng di động Hik-Connect App.
- Bộ đổi nguồn đi kèm trong gói (tiêu chuẩn Châu Âu).
Thông số kỹ thuật
| Door station | |
| Operation system | Embedded Linux operation system |
| Flash | 32 MB |
| RAM | 256 MB |
| Door station | |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | Support |
| Field of view | Horizontal: 146°, Vertical: 82° |
| Video Compression Standard | H.264 |
| Motion detection | Support |
| Door station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
| Door station | |
| Network protocol | TCP/IP, RSTP |
| Wired network | 10/100 Mbps Ethernet |
| Door station | |
| Network interface | 1 RJ45 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Debugging port | 1 |
| Lock control | 2 (2 relay, max to 30 V, 2 A) |
| TAMPER switch | 1 |
| Power interface | 12 VDC power output (max to 12 V, 500 mA) |
| Door station | |
| Power consumption | ≤ 5 W |
| Working temperature | -40° C to 60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Dimension | Device: 98 mm × 100 mm × 42 mm |
| Cover:117 × 107 × 4 mm | |
| Installation Frame:117 × 107 × 32.7mm | |
| Installation | Surface mounting |
| Protection level | IP65 |
| Power supply | IEEE802.3af, standard PoE |
| 12 VDC | |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station | |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Indoor station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Indoor station | |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| RS-485 | 1 RJ-45 10/100 Mbps self-adaptive |
| Indoor station | |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Indoor station | |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 23.6 mm |
- Bảo hành: 24 tháng.
