Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS604-S(C)

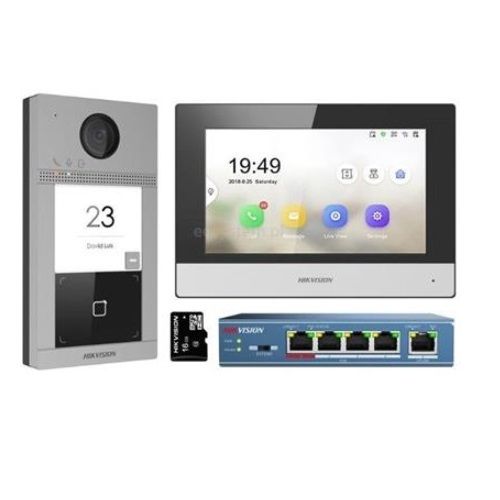

- Bộ Kit chuông cửa IP dành cho biệt thự hoặc nhà ở, có một nút gọi, bao gồm: DS-KV8113-WME1(C) × 1, DS-KH6320-WTE1 × 1, 4-port standard PoE switch × 1, 16 GB TF card × 1.
- Điều khiển thuận tiện qua ứng dụng di động Hik-Connect App.
- Lưu trữ tin nhắn và hình ảnh chụp được trong thẻ TF.
- Bộ đổi nguồn đi kèm trong gói (tiêu chuẩn Châu Âu).
Thông số kỹ thuật
| Door station | |
| Operation system | Embedded Linux operation system |
| Flash | 32 M |
| RAM | 256 M |
| Door station | |
| Supplement light | IR supplement |
| Resolution | Main stream: 1920 × 1080 Sub stream: 640 × 480 |
| Lens | 1 |
| WDR | Support |
| FOV | Horizontal: 124° Vertical: 75° |
| Video compression standard | H.264 |
| Door station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (more than 80 dB within 30 cm) |
| Volume adjustment | Adjustable |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Audio intercom | Two-way audio communication |
| Door station | |
| User capacity | 2000 |
| Door station | |
| Network protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Door station | |
| Network interface | 1 |
| RS-485 | 1 |
| Alarm input | 4 |
| Lock control | 2 |
| Exit button | 2 Max. |
| Door contact | 2 |
| Power interface | 1 |
| TAMPER | 1 |
| TF card | 1 (reserved) |
| Door station | |
| Button | 1 |
| Indicator | 3 |
| Power consumption | ＜ 10 W |
| Working temperature | -40° C to 53° C(-40° F to 127.4° F) |
| Power supply | Standard PoE/12 VDC |
| Power consumption | ＜ 10 W |
| Working humidity | 10% to 95% |
| Dimension | 174 mm × 91 mm × 29 mm |
| Protection level | IP65, IK08 |
| Application environment | Outdoor |
| Weight | 380 g |
| Installation | Surface Mounting |
| Indicator | 3 |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station | |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Indoor station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Indoor station | |
| Wired network | 10/100 Mbps self-adaptive |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Indoor station | |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Indoor station | |
| Power consumption | ≤ 6 W |
| Power supply | Standard PoE,12VDC |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 15.1 mm |
- Bảo hành: 24 tháng.
