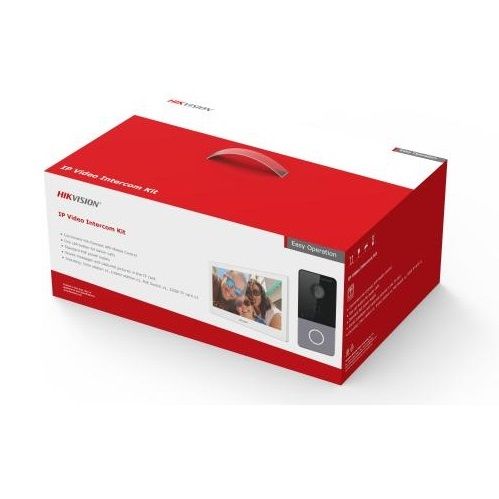

Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS607-S
- Bộ Kit chuông cửa có hình IP dành cho biệt thự hoặc nhà ở, có một nút gọi, bao gồm: DS-KV6113-PE1(C) x1; DS-KH6350-WTE1 Trắng x1; Công tắc PoE tiêu chuẩn 4 cổng x1; Thẻ TF 32GB x1.
- Điều khiển thuận tiện qua ứg dụng di động Hik-Connect.
- Tích hợp một nút gọi để dễ dàng thực hiện cuộc gọi.
- Nguồn cấp PoE tiêu chuẩn.
- Lưu trữ tin nhắn và hình ảnh chụp được trong thẻ TF.
- Bộ đổi nguồn đi kèm trong gói (tiêu chuẩn Châu Âu).
Thông số kỹ thuật
| Door station | |
| Operation system | Embedded Linux operation system |
| Flash | 32 MB |
| RAM | 256MB |
| Door station | |
| Supplement light | IR light, up to 3 m |
| Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 640 × 480p |
| Lens | 2MP HD camera |
| Wide dynamic range (WDR) | Support 120 dB |
| FOV | Horizontal: 131° Vertical: 78° |
| Video Compression Standard | H.264 |
| Motion detection | Support |
| Door station | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Door station | |
| Network protocol | TCP/IP, RSTP |
| Door station | |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 4 |
| Lock control | 1 relay, Max. 30 VDC 2 A |
| TAMPER switch | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Door station | |
| Power consumption | ＜ 10 W |
| Button | 1 physical button(s) |
| Working temperature | -40°C to 55°C (-40°F to 131°F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 2 |
| Application environment | Outdoor |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Weight | 0.190kg |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station | |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Indoor station | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Volume adjustment | Adjustable |
| Audio compression Rate | 64 Kbps |
| Indoor station | |
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Indoor station | |
| Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Indoor station | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Alarm output | 2 |
| TF card | Max to 128G |
| Indoor station | |
| Power consumption | ≤ 5 W |
| Power supply | 12 VDC,IEEE802.3af, Standard PoE |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 175 mm × 113.5 mm × 21 mm |
| Installation | Wall mounting, table mounting |
| Application environment | Indoor |
| Weight | 355g |
- Bảo hành: 24 tháng.
