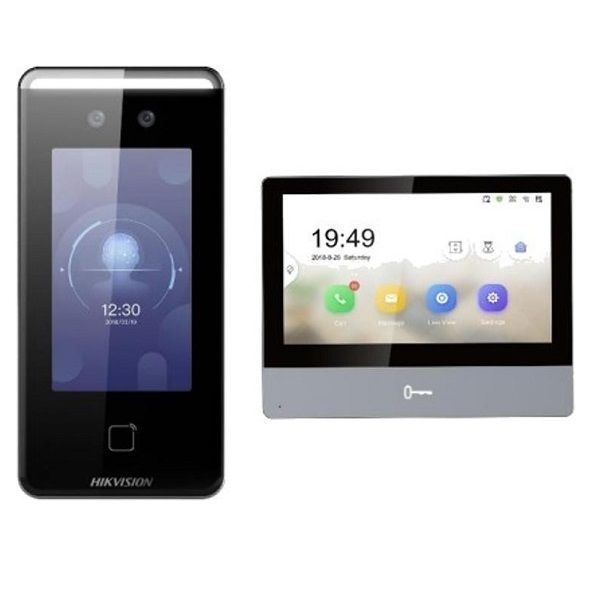

Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS901-P
- Bộ Kit chuông cửa có hình IP dành cho biệt thự hoặc khu thương mại, có một nút gọi, bao gồm: DS-K1T341AM × 1, DS-KH8350-WTE1 × 1, PSU × 2, 16GB TF card × 1.
- Tích hợp một nút gọi để dễ dàng thực hiện cuộc gọi.
- Hỗ trợ kết nối Wi-Fi và nguồn cấp PoE để cài đặt dễ dàng.
- Bộ đổi nguồn đi kèm trong gói (tiêu chuẩn Châu Âu).
Thông số kỹ thuật
| Face Recognition Terminal | |
| System parameters | |
| Operation system | Embedded Linux operation system |
| Authentication | |
| Card type | M1 card |
| Card reading distance | 0 to 3 cm |
| Card reading duration | < 1 s |
| Face recognition duration | < 0.2 s |
| Face recognition distance | 0.3 to 1.5 m |
| General | |
| Protection level | IP65 |
| Power supply | 12 VDC, 2A |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Function | |
| Face antispoofing | Support |
| Live view | Supports live view on the platform, H.264 |
| Face recognition | Supports face recognition in low illumination |
| Access control management | Support multiple authentication methods |
| Audio | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Volume adjustment | Adjust via device or client |
| Network | |
| Wired network | 10/100/1000 Mbps self-adaptive |
| Communication protocol | ISUP 5.0 |
| Camera | |
| Pixel | 2 MP |
| WDR | Support |
| Lens | 2 |
| Video standard | PAL (Default) and NTSC |
| Screen | |
| Size | 4.3-inch |
| Resolution | 800 × 480 |
| Operation method | Capacitive touch screen |
| Interfaces | |
| Network interface | 1, RJ45 |
| RS-486 | 1 |
| Wiegand | Wiegand 26 and Wiegand 34 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Power interface | 1 |
| TAMPER switch | 1 |
| USB | 1, USB 2.0 |
| Capacity | |
| Card capacity | 1500 |
| Face capacity | 1500 |
| Event capacity | 150000 |
| Indoor station | |
| System parameters | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Display parameters | |
| Display screen | 7-inch colorful IPS LCD |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen, physical button |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Network parameters | |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Alarm input | 8-ch alarm inputs |
| I/O output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| General | |
| Power supply | IEEE802.3af, standard PoE 12 VDC/1 A |
| Power consumption | ≤ 7 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 180 mm × 140 mm × 22.4 mm (7.09' ×5.51' × 0.88') |
| Power supply via detector | 12 V, 200 mA |
| Weight | 899 g (with packaging) 355 g (without packaging) |
- Bảo hành: 24 tháng.
