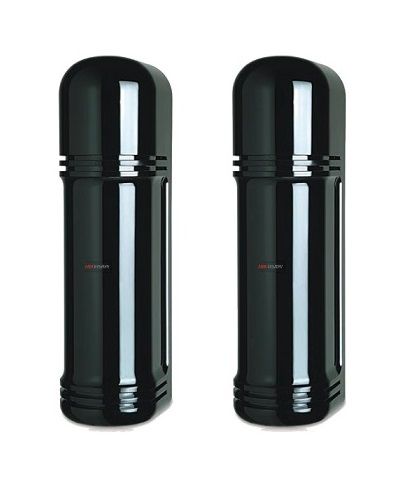

Quadruple Beam Photoelectric Detector HIKVISION DS-PI-Q150

HIKVISION DS-PI-Q150

  • MS 0017143
  • HIKVISION
Giá : Liên hệ

Quadruple Beam Photoelectric Detector HIKVISION DS-PI-Q150

Quadruple Beam Photoelectric Detector HIKVISION DS-PI-Q150

- Detection Range: 150m.

- High power quad beam.

- Clear Viewfinder Visibility.

- Fine Angle Adjustment for Alignment.

- Rain, Dustând Insect Protection.

- Frost and Dew Protection.

- High Grade Aspherical Lens.

Thông số kỹ thuật

Alarm Distance150m
Max reaching distance1500m
Beams NO4 beams
Detecting Way4 beams Intercepted simultaneously
Light SourceDigital Pulse IR LED
Response Time35~700ms
Alarm Output & DQ OutputFORM C(NO/NC changeable), Contact ratings DC 30V 0.5A max.
Supply VoltageDC10.5~28V(non-polarity)
Recommend supply VoltageDC 12V or 24V(non-polarity)
Supply Current90mA
Operation Temperature Range-25°C~+55°C
Tamper OutputContact Output 1b DC 30V 0.05A max
Optic axis adjust angle (Horizontal)180°(±90°)
Optic axis adjust angle (Vertical)24°(±12°)
SightPeep window
Strategy to dew/frostSlit type mask, optional heater
Other additional functionsSensitivity to monitor output terminals, OK indicator
MaterialPC front cover; ABS Back Cover
AttachmentSelf-tapping screw: eight, filter: 2 slices
Dimensions (H×W×D)353mm×99mm×104mm
WeightAround 1970g ( Transmitter and Receiver )

- Bảo hành: 24 tháng.
