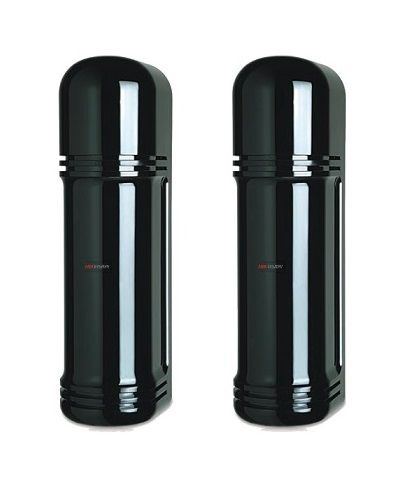

Quadruple Beam Selectable Frequency Photoelectric HIKVISION DS-PI-Q150/FM
- Frequency Modulation: Ch1-Ch4.
- Detection Range: 150m.
- High power quad beam.
- Clear Viewfinder Visibility.
- Fine Angle Adjustment for Alignment.
- Rain, Dust and Insect Protection.
- Frost and Dew Protection.
- High Grade Aspherical Lens.
Thông số kỹ thuật
| Alarm Distance | 150m |
| Max reaching distance | 1500m |
| Beams NO. | 4 beams |
| Detecting Way | 4 beams Intercepted simultaneously |
| Light Source | Digital Pulse IR LED |
| Response Time | 50~700ms |
| Channel Choice | 4 Channels CH1~CH4 |
| Alarm Output & DQ Output | FORM C(NO/NC changeable), Contact ratings DC 30V 0.5A max. |
| Supply Voltage | DC10.5~28V(non-polarity) |
| Recommend supply Voltage | DC 12V or 24V(non-polarity) |
| Supply Current | 125mA |
| Operation Temperature Range | -25°C~+55°C |
| Tamper Output | Contact Output 1b DC 30V 0.05A max |
| Optic axis adjust angle (Horizontal) | 180°(±90°) |
| Optic axis adjust angle (Vertical) | 24°(±12°) |
| Sight | Peep window |
| Strategy to dew/frost | Slit type mask, optional heater |
| Other additional functions | Sensitivity to monitor output terminals, OK indicator |
| Material | PC front cover; ABS Back Cover |
| Attachment | Self-tapping screw: eight, filter: 2 slices |
| Dimensions (H×W×D) | 353mm×99mm×104mm |
| Weight | Around 1970g ( Transmitter and Receiver ) |
- Bảo hành: 24 tháng.
