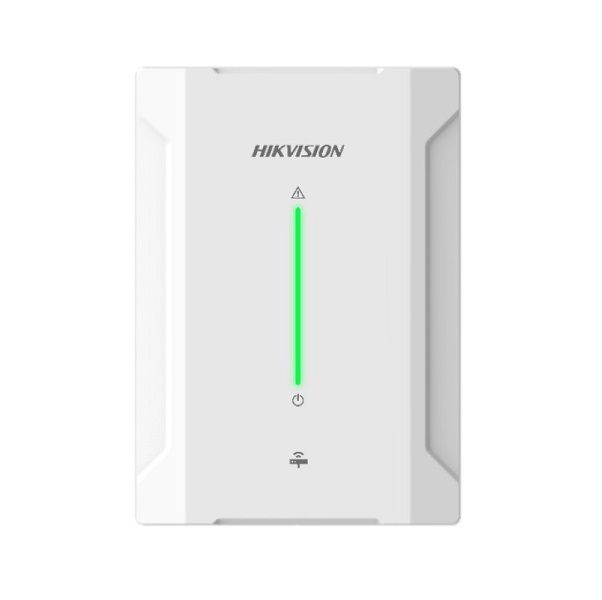

Speed-X Wired Input Expander HIKVISION DS-PM1-I8O2-H (Gen2)
- Support 8 on-board wired zones.
- Support 3EOL connection (Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ).
- Support zone alarm, tamper, masking, fault, short detection.
- 1 power output for wired detectors.
- 2 Speed-X bus, supporting wired input expander cascade mode.
Specification
| Hardware features | |
| Alarm input | 8 |
| IO Output | 2 (connect to relay module) |
| Bus | 2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading |
| Tamper-Proof | Support (front and rear) |
| Electrical characteristics | |
| Power supply | 11 to 24 VDC |
| Typical voltage | 12 VDC |
| Power consumption | Maximum current: 119 mA@12 VDC Quiescent current: 45 mA@12 VDC |
| Output Voltage | 9 to 12 VDC |
| Output Current | Maximum 500 mA |
| Display | |
| LED Indicator | LED indicators: 1 for power, 1 for fault |
| General | |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
| Shell material | Plastic |
| Dimension(WxHxD) | 110 mm × 155 mm × 32 mm |
| Weight | 252.5 g |
- Bảo hành: 24 tháng.
