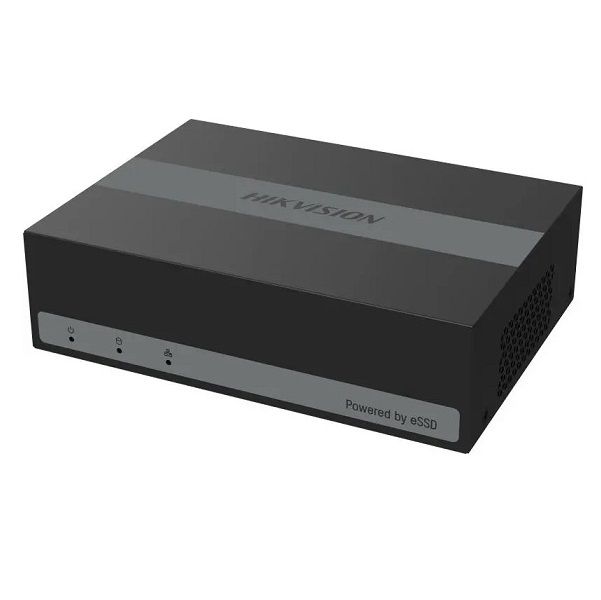

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION iDS-E04HQHI-D
- Hỗ trợ video đầu vào: HDTVI/AHD/CVI/CVBS/IP.
- Hỗ trợ 1 kênh camera IP.
- Tương thích với tín hiệu ngõ ra: 1-ch HDMI, 1-ch VGA.
- Tiêu chuẩn nén hình ảnh: H.265 Pro/H.265.
- Tích hợp ổ cứng eSSD với dung lượng 1TB.
- Motion Detection 2.0: Thuật toán phân tích người và xe chống báo động giả.
- Kích thước (W × D × H): 151 × 121 × 46 mm.
- Trọng lượng: ≤0.5kg.
Đặc tính kỹ thuật
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch |
| Recording | |
| Video Compression | H.265 Pro/H.265 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K Lite/5 MP Lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K Lite/5 MP Lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 5 MP stream access: 5 MP Lite@12fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 4 MP stream access: 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 3K Lite/5 MP Lite@12fps; 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period. |
| Stream Type | Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual. |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 1-ch Up to 6 MP resolution Support H.265+/H.265 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD Input | 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps |
| HDCVI Input | 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 4-ch via coaxial cable |
| Audio Output | 1-ch via HDMI |
| Synchronous playback | 4-ch |
| Network | |
| Total Bandwidth | 72 Mbps Incoming bandwidth: 4 Mbps |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| Capacity | Built-in 1024 GB eSSD (960 GB available) Note: The device can store about 4 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only |
| USB Interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1 A |
| Consumption | ≤ 5.4 W (with eSSD) |
| Working Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 151 × 121 × 46 mm |
| Weight | ≤ 0.5 kg (with eSSD, 1.1 lb.) |
- Bảo hành: 24 tháng.
