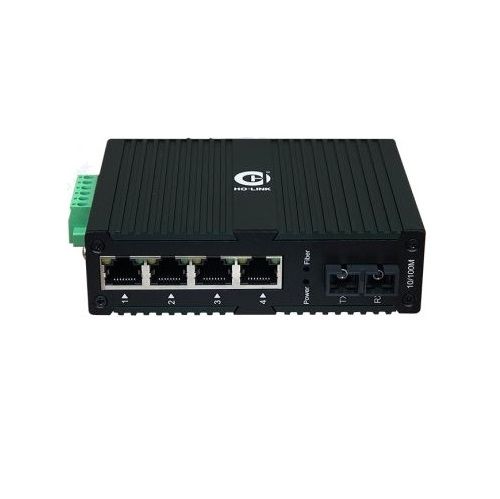

Bộ chuyển đổi quang công nghiệp 10/100Mbps HO-LINK HL-IES-1FX4TX-20
- Switch quang công nghiệp 4 cổng 10/100M (4 cổng đồng, 1 SC 20km).
- Port: 4 x 10/100M ports + 1 x 155M SC Duplex 1310nm optical port Industrial.
- Nhiệt độ: -40°C đến 85°C.
- Nguồn cấp vào: 12V~52VDC.
Thông số kỹ thuật
| Standards | IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.3x flow control and back pressure IEEE802.1d spanning tree |
| Copper port | Data Rate:10/100M Connector:RJ45 Distance: 100m |
| Fiber port | Data Rate: 155M Connector: SC as default, FC/ST/SFP(optional) Distance: + Multi-mode Fiber 2km + Single-mode Fiber 20km Wavelength:1310nm/1550nm |
| Performance | Processing Type: store and forward Back Bandwidth: 1.0Gbps MAC Address Size: 1024Kbits Packet Buffer Size: 512Kbit Frame: 2048bytes Time Delay: <10us |
| LED indicators | Power: ON=Power connected 1~4: ON=Copper connected Fiber: ON=Fiber connected |
| Electrical&Mechanical | Input Voltage: 12~52 VDC,redundant power inputs Protection: Overload current; reverse polarity Power Connector: terminal block Dimension: 174*147*55mm; Weight: 0.4kg; |
| Environmental | Operating Temperature:-40℃～85℃ Storage Temperature: -40℃~85℃ Relative Humidity: 5%~95（non-condensing） MTBF: 100000 hours |
- Bảo hành: 24 tháng.
