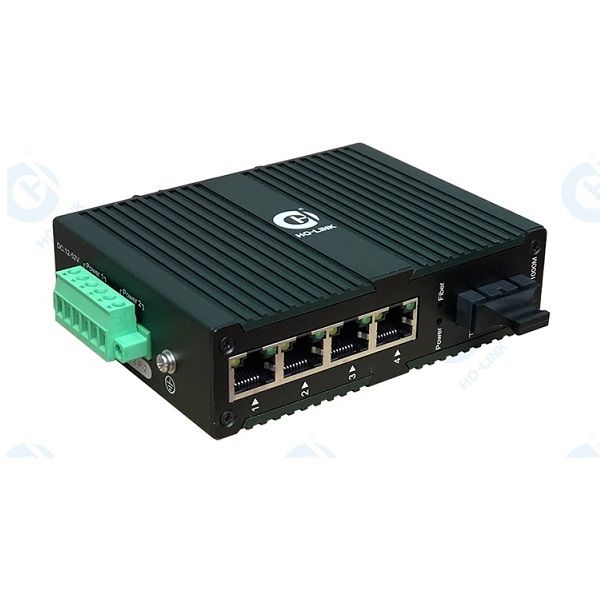

Bộ chuyển đổi quang công nghiệp 10/100/1000Mbps HO-LINK HL-IES-1GX4GT-20
- Switch quang công nghiệp 4 cổng 10/100/1000M (4 cổng đồng, 1SC 20km).
- Port: 4 x 10/100/1000M + 1 x 1000M SC Duplex 1310nm optical Industrial.
- Nhiệt độ: -40 đến 85°C.
- Nguồn cấp vào: 12V~52VDC
Thông số kỹ thuật
| Standards | IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE 802.3ab for 1000base-T IEEE 802.3z for 1000base-X IEEE802.3x flow control and back pressure IEEE802.1d spanning tree |
| Copper port | Data Rate: 10/100/1000M Connector: RJ45 Distance: 100m |
| Fiber port | Data Rate: 1.25G Connector: SC as default, FC/ST/SFP(optional) Distance: - Multi-mode Fiber 2km - Single-mode Fiber 20km Wavelength: TX1310nm/RX1310nm |
| Performance | Processing Type: store and forward Back Bandwidth: 10Gbps MAC Address Size: 2Kbits Packet Buffer Size: 1Mbit Frame: 10Kbytes Time Delay: <10us |
| LED indicators | Power: ON=Power connected 1~4: ON=Copper connected Fiber: ON=Fiber connected |
| Electrical&Mechanical | Input Voltage: 12~52 VDC,redundant power inputs Protection: overload current; reverse polarity Power Connector: terminal block Dimension: 174*147*55mm; Weight: 0.4kg; |
| Environmental | Operating Temperature: -40℃~85℃ Storage Temperature: -40℃~85℃ Relative Humidity:5%~95（non-condensing） MTBF: 100000 hours |
- Bảo hành: 24 tháng.
