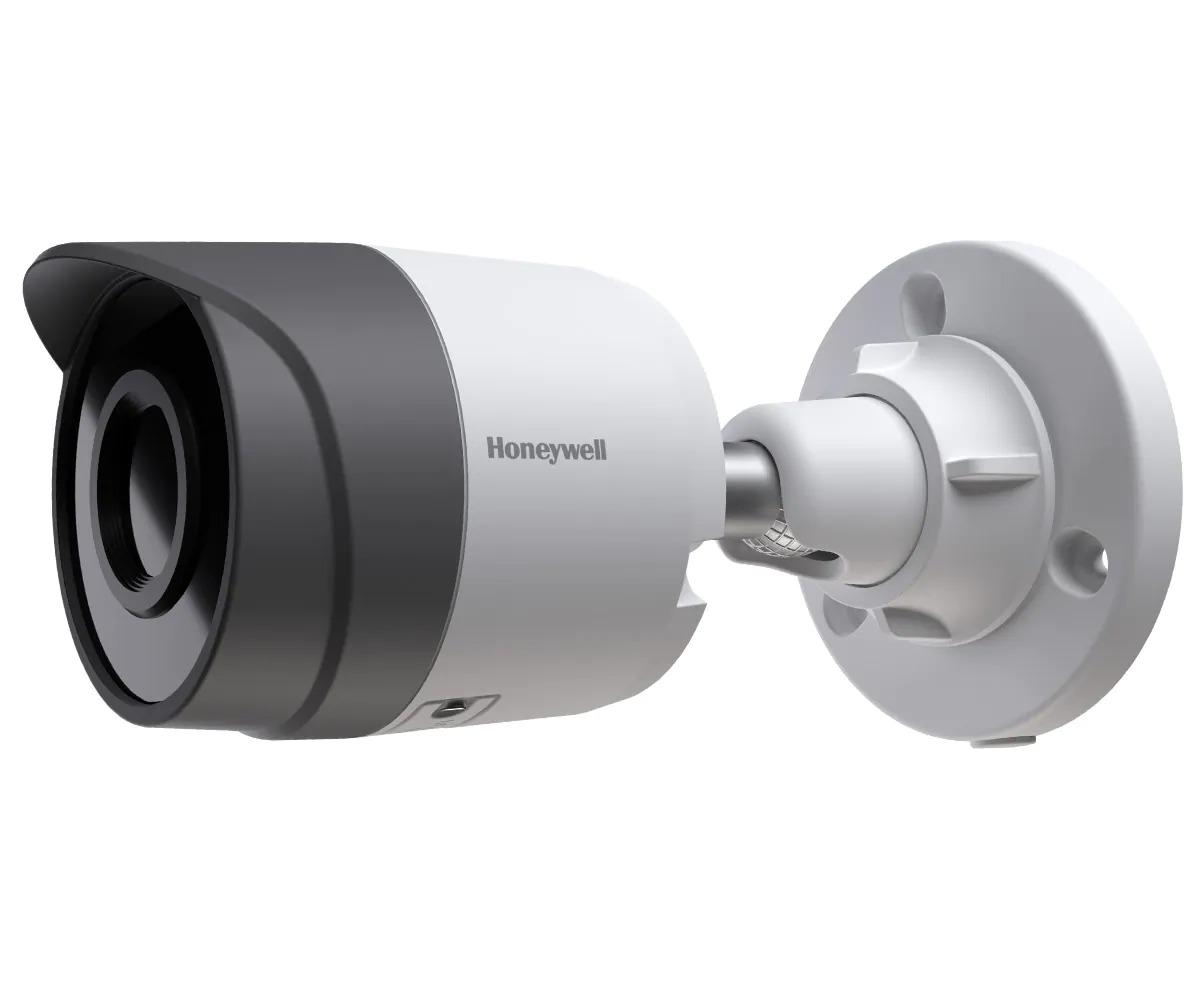

Camera IP hồng ngoại 2.0 Megapixel HONEYWELL HC30WB2R1
- Cảm biến hình ảnh: 1/2.9-inch Progressive CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 4.0mm, Fixed, F2.0.
- Tốc độ khung hình: Lên đến 30 fps.
- Độ nhạy sáng tối thiểu: 0.065 lux color @ F2.0, 0 lux; B/W with IR LEDs on @ F2.0.
- Hỗ trợ khe cắm thẻ nhớ cho Micro SD, Micro SDHC, Micro SDXC up to 256GB.
- Tầm quan sát hồng ngoại: 50 mét.
- Chuẩn nén hình ảnh: H.265/H.264/Smart Codec/MJPEG.
- Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12 VDC.
Đặc tính kỹ thuật
| Model | HC30WB2R1 |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive |
| Image Sensor | 1/2.9-inch Progressive CMOS |
| Number Of Pixels (H × V) | 1920(H) x 1080(V) |
| Minimum Illumination | 0.065 lux color @ F2.0, 0 lux B/W with IR LEDs on @ F2.0 |
| S/N Ratio | > 55 dB |
| Electronic Shutter Speed | 1/5 ~ 1/32,000 |
| IR Distance | Distance up to 50m(165ft) |
| IR Light Control | Smart IR (Auto/Manual)/OFF |
| IR Light Number | 2 |
| Day/Night | Auto/Day/Night/Schedule |
| Backlight Compensation | WDR, HLC |
| White Balance | Auto/Fixed Current/Manual |
| Gain Control | 0-100% |
| Wide Dynamic Range | 120dB |
| Noise Reduction | 3D DNR |
| Privacy Masking | Off / On (5 Areas) |
| Motion Detection | Motion/Intrusion/People detection |
| Tampering Detection | Tampering Detection/ Image too dark detection/ Image too bright detection/ Image too blurry detection |
| Region Of Interest | Support |
| Lens | 4.0mm, Fixed, F2.0 |
| Angle Of View | H:81°, V:44° |
| VIDEO | |
| Video Compression | H.265/H.264/Smart Codec/MJPEG |
| Resolution | 1920×1080/ 1600x904/ 1360x768/ 1280x720/ 640x360 |
| Frame Rate | Main Stream: 1080P (1 ~ 25/30fps); Sub Stream: 720P (1 ~ 25/30fps); Third Stream: 640x360(1 ~ 25/30fps); |
| Bit Rate Control | Constrained bit rate/Fixed quality |
| Bit Rate | 20K ~ 40Mbps |
| NETWORK | |
| Ethernet | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| Supported Web Browsers | Chrome 71+, Internet Explorer 11.0+ |
| Supported OS | Microsoft Windows 7/10 |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interoperability | ONVIF Profile G/S |
| Maximum Users Access | 10 Users |
| Security | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/ Telnet closed, PCIDSS compliance |
| Event | Event notification using HTTP, SMTP, NAS server and MicroSD card File upload via HTTP, SMTP, NAS server and MicroSD card |
| Micro SD | Micro SD/SDHC/SDXC card slot (256GB) |
| ELECTRICAL | |
| Power Supply | DC12V, PoE (IEEE 802.3af) (Class 2) |
| Power Consumption | MAX 6.49W |
| MECHANICAL | |
| Dimensions | ø91.1mm x 177mm (ø3.59” x 6.97’’) |
| Product Weight | 0.53kg |
| Package Weight | 0.74kg |
| Material | Die-casting aluminum housing with coating |
| Construction Color | RAL 120-1 (Lyric White) |
| ENVIRONMENTAL | |
| Operating Temperature | Starting: -10°C ~ 60°C (14°F ~ 140°F) Working: -30°C ~ 60°C (-22°F ~ 140°F) |
| Relative Humidity | Less than 90%, non-condensing |
| Ingress Protection | IP66 |
| REGULATORY | |
| Emissions | FCC PART 15B, EN 55032, EN61000-6-3 |
| Immunity | EN 50130-4 |
| Safety | UL 62368-1, EN 62368-1 |
| ROHS | EN 50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
