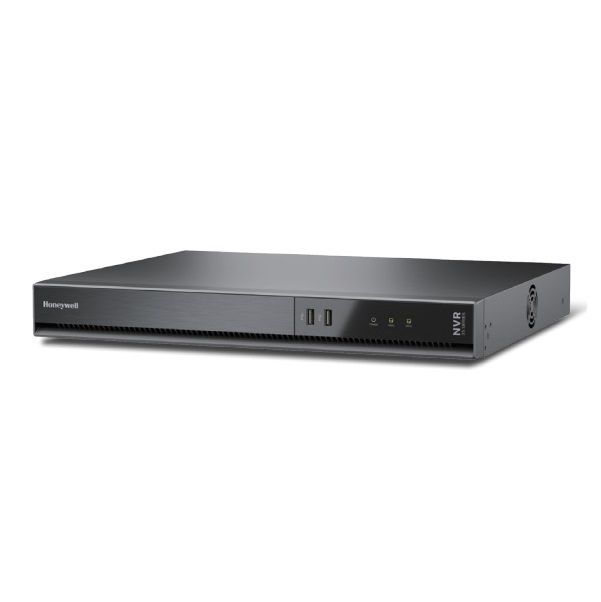

Đầu ghi hình camera IP 16 kênh HONEYWELL HN35160200
- Đầu ghi hình camera IP hỗ trợ 16 kênh đầu vào.
- Chuẩn nén hình ảnh: H.265 HEVC smart codec/H.264.
- Tương thích với tín hiệu ngõ ra: HDMI x 1 (4K Max), VGA x 1 (1080P).
- Hỗ trợ 16 cổng PoE 802.3at/af compliant PoE.
- Hỗ trợ 2 ổ cứng SATA với dung lượng 0TB.
- Dung lượng lưu trữ tối đa: Max. 10TB.
- Hệ điều hành: Embedded LINUX.
- Hỗ trợ 8 cổng vào và 2 cổng ra báo động.
Thông số kỹ thuật
| SYSTEM | |
| Main Processor | ARM Processor |
| Operating System | Embedded LINUX |
| ONVIF Compliance | ONVIF Profile S |
| User Management | User Level: Administrator, Regular User |
| Log | System, Recording, User |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Fan | Yes |
| Security | Encrypted streaming and control |
| VIDEO | |
| Inputs | 16 channels |
| AUDIO | |
| Audio Input/Output | 3.5 mm Line in x1 3.5 mm Line out x1 |
| Two-way Communication | Supported |
| Audio Format | G.711 |
| DISPLAY | |
| Interface | HDMI x 1 (4K Max), VGA x 1 (1080 P) |
| Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024,1024 x 768 |
| Display Split | 1 x 1, 2 x 2, 3 x 3, 4 x 4, 1 + 7, customs |
| OSD | Time OSD, channel OSD |
| Stream Application | 1x1: 1 ch 4 K MAX 2x2: 2 MP in, 4x1080 P 2x2: >2 MP, Camera Stream 2 3x3: and above: Camera Stream 2 |
| PTZ Operation | Direction control, home, iris, preset, patrol |
| VIDEO DETECTION AND ALARMS | |
| Event | Camera: Camera Alarm In, Motion Detection, Camera Disconnection, Tampering Detection, Smart Motion Detection, Intrusion, Crowd Detection, Multi-Loitering System: System Alarm In/Out, Disk Failure, Disk Full |
| Event Action | Video Recording, Send Email, Buzzer, FTP, Camera Alarm Out, PTZ-Preset, System Alarm Out,Send Video to Full Screen |
| Alarm Input | 8 |
| Alarm Out | 2 |
| RECORDING | |
| Compression | H.265 HEVC smart codec/H.264 |
| Resolution | Up to 3840 x 2160 |
| Frame Rate | 30 fps |
| Recording Mode | Continuous, Manual, Event |
| Max Pre-Event Recording Buffer Size | Main Stream: 8 Mbps Sub Stream: 4 Mbps |
| Post-Event Recording Interval | 30 s (Max. 60 s) |
| Recording Stream | Support main stream and sub stream simultaneous recording |
| Recording Throughput | 128 Mbps |
| STORAGE | |
| Internal HDD Slots | Internal x2 (3.5 inch) |
| HDD Max. Capacity | 10 TB |
| Manual Backup | USB Dongle (FAT Format) |
| PLAYBACK AND BACKUP | |
| Sync Playback | 16 channels |
| Decoding | H.265/H.264: 3840 X 2160 @ 30 fps (1-CH), 2560 * 1920 @ 30 fps (1-CH), 1920 X 1080 @ 120 fps (4-CH), 720 X 576 @ 480 fps (16-CH) |
| Search Mode | Time search ,Event Search, Video clip |
| Playback Function | Regular (Play, Pause, Stop), Play Backwards, Next Frame, Go Back 30 Seconds, Go Forward 30 Seconds, Speed Control, Timeline, Timeline Scale,Digital Zoom, Snapshot, Back Up |
| Snapshot | JPEG |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Relative Humidity | Less than 90% RH |
| Storage Temperature | –40°C ~ 60°C (-40°F ~ 140°F) |
| ELECTRICAL | |
| Power Supply | 100-240V AC, 50/60 Hz |
| Power Consumption | Max. 180 W; 15W without HDD PoE Ports Output Power: 130W max. (30W max. for a single port) |
| NETWORK | |
| Ethernet | 10/100/1000 Mbps Ethernet (RJ-45) x 1 |
| PoE | 802.3at/af compliant PoE ports x 16 |
| Supported Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter, P2P |
| Maximum Number of Users | 16 |
| Network Throughput | 128 Mbps |
| Smart Phone Compatibility | IOS 11 or later and Android 5.0 or later support |
| Browsers | Edge, Chrome, Firefox, Safari |
| AUXILIARY INTERFACE | |
| USB Ports | Front x2, usb 2.0; Back x1, usb 2.0 |
| PHYSICAL | |
| Dimensions | 372.0 × 313.3 × 46.5 mm |
| Weight (Without HDD) | 2.75 kg without HDD |
| REGULATORY | |
| Emissions | FCC Part 15, CE (EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-6-4), ICES-003, Comply with UKCA and RCM |
| Immunity | CE(EN 50130-4, EN 55024, EN 55035) Comply with UKCA and RCM |
| Safety | UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Comply with UKCA and RCM |
| RoHS | CE(EN 63000), UAE(Cabinet Decree No.10 of 2017) |
- Bảo hành: 24 tháng.
