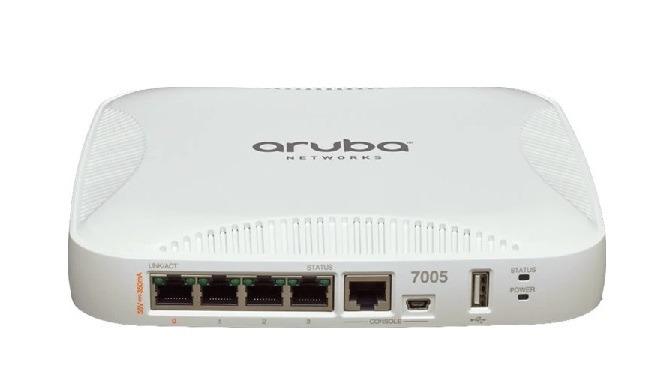

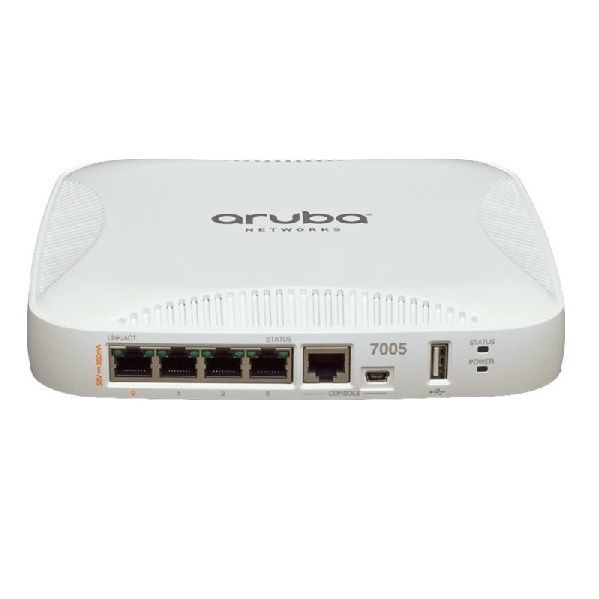

HP Aruba Mobility Controller JW633A
- HP Aruba Mobility Controller JW633A ( Aruba) supports 4x10/100/1000BASE-T ports, supports up to 16 AP and 1K client, powered by PoE-PD ethernet port (optional DC power accessory available).
- Support for new 802.11ax (Wi-Fi 6), WPA3 and Enhanced Open – and existing standards.
- Patented ClientMatch technology can now group together 802.11ax-capable devices.
- Application awareness for 2,600+ applications with no additional hardware.
- Built-in AI-powered wireless/RF optimization.
- Unifies policy enforcement for WLAN, LAN and WAN traffic.
Specification
| Performance and Capacity | |
| Maximum campus or remote AP licenses | 16 AP |
| Maximum concurrent users/devices | 1024 users/devices |
| Maximum VLANs | 4096 VLANs |
| Active firewall sessions | 16384 |
| Concurrent GRE tunnels | 256 |
| Concurrent IPsec sessions | 1024 |
| Concurrent SSL sessions | 1024 |
| Concurrent Tunneled Ports | 512 Gbps |
| Firewall throughput (Gbps) | 2 Gbps |
| Encrypted throughput 3DES (Gbps) | 1.2 Gbps |
| Encrypted throughput AES-CBC-256 (Gbps) | 1.3 Gbps |
| Encrypted throughput AES-CCM (Gbps) | 1.9 Gbps |
| Encrypted throughput AES-GCM-256 (Gbps) | 1.7Gbps |
| Interfaces and Indicators | |
| Form factor/footprint | Desktop/fanless |
| 10/100/1000BASE-T | 4 |
| USB 2.0 | 1 |
| Management/status LEDs | Yes |
| LINK/ACT and status LEDs | Yes |
| Console port | mini USB, RJ-45 |
| Power over Ethernet (PoE) Support | |
| PoE Role/Mode | Powered Device (PD) |
| PoE In or Out | In – Port 0 |
| Physical | |
| Dimensions (HxWxD) | 4.1 x 20 x 20 cm |
| Weight | 0.92 kg |
| Environmental Range | |
| Operating temperature | 0° C to 40° C |
| Storage temperature | -40° C to 70° C |
| Maximum power consumption | 16.6W (with USB) |
| Power Source | PoE or 12v - 30W |
- Bảo hành: 12 tháng.
