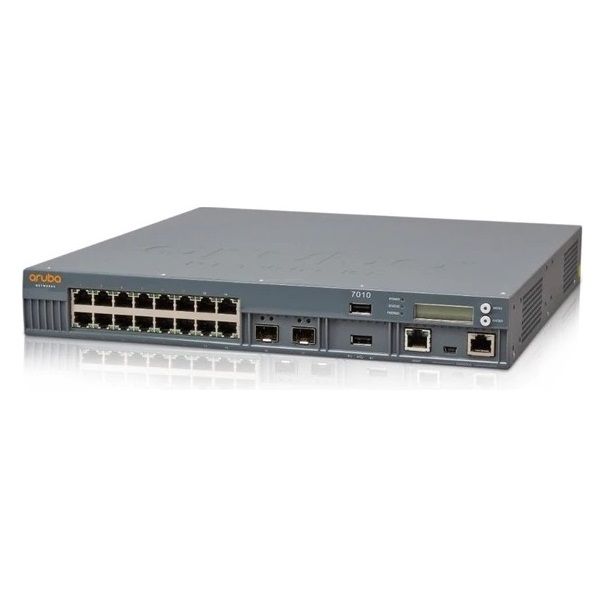

HP Aruba Mobility Controller JW678A
- Aruba 7010 (RW) 12x10/100/1000BASE-T PoE/PoE+ (150W), 4x10/100/1000BASE-T, 2x1G BASE-X SFP ports, Supports up to 32AP and 2K clients. Integrated AC power supply.
- Support for new 802.11ax (Wi-Fi 6), WPA3 and Enhanced Open – and existing standards.
- Patented ClientMatch technology can now group together 802.11ax-capable devices.
- Application awareness for 2,600+ applications with no additional hardware.
- Built-in AI-powered wireless/RF optimization.
- Unifies policy enforcement for WLAN, LAN and WAN traffic.
Specification
| Performance and Capacity | |
| Maximum campus or remote AP licenses | 32 AP |
| Maximum concurrent users/devices | 2048 users/devices |
| Maximum VLANs | 4096 VLANs |
| Active firewall sessions | 32768 |
| Concurrent GRE tunnels | 512 |
| Concurrent IPsec sessions | 2048 |
| Concurrent SSL sessions | 2048 |
| Concurrent Tunneled Ports | 1024 Gbps |
| Firewall throughput (Gbps) | 4 Gbps |
| Wired Bridged Throughput (Gbps) | 8 Gbps |
| Encrypted throughput 3DES (Gbps) | 2.4 Gbps |
| Encrypted throughput AES-CBC-256 (Gbps) | 2.6 Gbps |
| Encrypted throughput AES-CCM (Gbps) | 3.5 Gbps |
| Encrypted throughput AES-GCM-256 (Gbps) | 3.4 Gbps |
| Interfaces and Indicators | |
| Form factor/footprint | 1xRU |
| 10/100/1000BASE-T | 16 |
| 1000BASE-X | 2xSFP |
| USB 2.0 | 2 |
| Management/status LEDs | Yes |
| LINK/ACT and status LEDs | Yes |
| LCD panel and navigation buttons | Yes |
| Console port | mini USB, RJ-45 |
| Out-of-band management port | Yes |
| Power over Ethernet (PoE) Support | |
| PoE Role/Mode | Power Source Equipment (PSE) |
| PoE In or Out | Out |
| Number of PoE+2 capable Ports | 12 |
| Max concurrent of PoE Ports | 12 |
| Max concurrent PoE+ Ports | 5 |
| PoE Power Budget | 150W |
| Physical | |
| Dimensions (H x W x D) | 4.42 x 31.75 x 33.7 cm |
| Weight | 3.4 kg |
| Environmental Range | |
| Operating temperature | 0° C to 40° C |
| Storage temperature | -40° C to 70° C |
| Maximum power consumption | 190W (with PoE) |
| Power Source | internal power supply |
- Bảo hành: 12 tháng.
