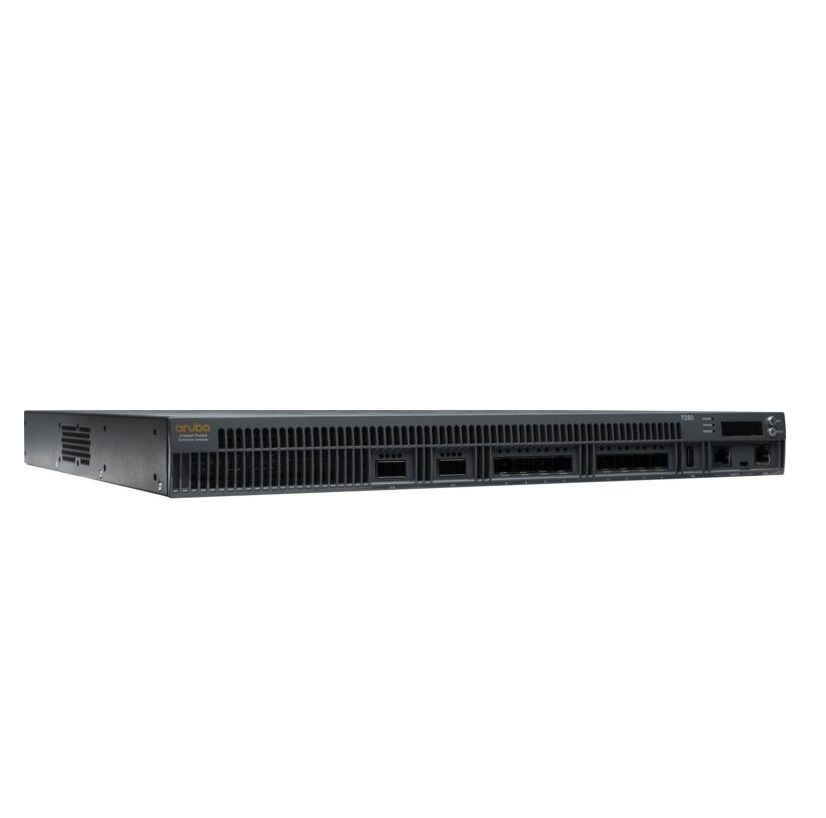

HP Aruba Mobility Controller JX911A
- Aruba 7280 (RW) Controller supports 2 QSFP+ Ports, 8 SFP+ Ports, Extended Memory with 16G SDRAM.
(Supports up to 2K Aps and 32K Client).
- Support for new 802.11ax (Wi-Fi 6), WPA3 and Enhanced Open – and existing standards.
- Patented ClientMatch technology can now group together 802.11ax-capable devices.
- Application awareness for 2,600+ applications with no additional hardware.
- Built in AI-powered wireless/RF optimization.
- Unifies policy enforcement for WLAN, LAN and WAN traffic.
Specification
| Performance and Capacity | |
| Maximum campus or remote AP licenses | 2048 AP |
| Maximum concurrent users/devices | 32768 users/devices |
| Maximum VLANs | 4096 VLANs |
| Active firewall sessions | 2015291 |
| Concurrent GRE tunnels | 32768 |
| Concurrent IPsec sessions | 32768 |
| Concurrent SSL sessions | 8192 |
| Concurrent Tunneled Ports | 16384 |
| Firewall throughput (Gbps) | 100 Gbps |
| Wired Bridged Throughput (Gbps) | 100 Gbps |
| Encrypted throughput 3DES (Gbps) | 57 Gbps |
| Encrypted throughput AES-CBC-256 (Gbps) | 46 Gbps |
| Encrypted throughput AES-CCM (Gbps) | 79 Gbps |
| Encrypted throughput AES-GCM-256 (Gbps) | 80 Gbps |
| Interfaces and Indicators | |
| Form factor/footprint | 1xRU |
| 10G Ports (10G or 1G supported) | 8xSFP+ |
| 40G Ports | 2xQSFP+ |
| USB 2.0 | 1 |
| Management/status LEDs | Yes |
| LINK/ACT and status LEDs | Yes |
| LCD panel and navigation buttons | Yes |
| Console port | mini USB, RJ-45 |
| Out-of-band management port | Yes |
| Physical | |
| Dimensions (H x W x D) | 4.4 x 44.2 x 40.1 cm |
| Weight | 7.9 kg |
| Environmental Range | |
| Operating temperature | 0° C to 40° C |
| Storage temperature | -40° C to 70° C |
| Maximum power consumption | 240W (with PoE) |
| Power Source | 550-watt AC or DC power supply |
- Bảo hành: 12 tháng.
