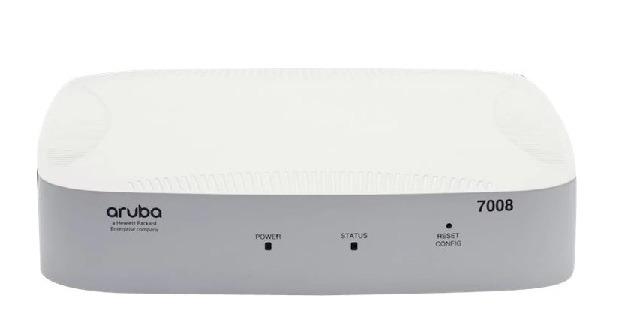

HP Aruba Mobility Controller JX927A
- HP Aruba Mobility Controller JX927A (Aruba 7008) supports 8 ports 100W PoE 10/100/1000BASE-T, supports 16 AP and 1000 Client Controller.
- Support for new 802.11ax (Wi-Fi 6), WPA3 and Enhanced Open – and existing standards.
- Patented ClientMatch technology can now group together 802.11ax-capable devices.
- Application awareness for 2,600+ applications with no additional hardware.
- Built-in AI-powered wireless/RF optimization.
- Unifies policy enforcement for WLAN, LAN and WAN traffic.
Specification
| Performance and Capacity | |
| Maximum campus or remote AP licenses | 16 AP |
| Maximum concurrent users/devices | 1024 users/devices |
| Maximum VLANs | 4096 VLANs |
| Active firewall sessions | 16384 |
| Concurrent GRE tunnels | 256 |
| Concurrent IPsec sessions | 1024 |
| Concurrent SSL sessions | 1024 |
| Concurrent Tunneled Ports | 512 Gbps |
| Firewall throughput (Gbps) | 2 Gbps |
| Wired Bridged Throughput (Gbps) | 4 Gbps |
| Encrypted throughput 3DES (Gbps) | 1.2 Gbps |
| Encrypted throughput AES-CBC-256 (Gbps) | 1.3 Gbps |
| Encrypted throughput AES-CCM (Gbps) | 2.2 Gbps |
| Encrypted throughput AES-GCM-256 (Gbps) | 1.7Gbps |
| Interfaces and Indicators | |
| Form factor/footprint | Desktop/fanless |
| 10/100/1000BASE-T | 8 |
| USB 2.0 | 2 |
| Management/status LEDs | Yes |
| LINK/ACT and status LEDs | Yes |
| Console port | RJ-45 |
| Power over Ethernet (PoE) Support | |
| PoE Role/Mode | Power Source Equipment (PSE) |
| PoE In or Out | Out |
| Number of PoE+2 capable Ports | 8 |
| Max concurrent of PoE Ports | 8 |
| Max concurrent PoE+ Ports | 3 |
| PoE Power Budget | 100W |
| Physical | |
| Dimensions (H x W x D) | 4.2 x 20.32 x 20.32 cm |
| Weight | 1.0 kg |
| Environmental Range | |
| Operating temperature | 0° C to 40° C |
| Storage temperature | -40° C to 70° C |
| Maximum power consumption | 126W (with PoE) |
| Power Source | 150-watt power supply |
- Bảo hành: 12 tháng.
