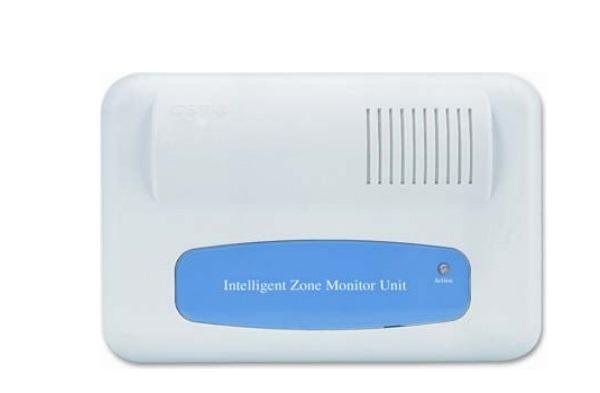

Addressable Zone Monitor Unit GST I-9319

- I-9319 intelligent zone monitor unit is an addressable interface module, which will integrate conventional detectors or conventional manual call points to addressable system.

- Interface with conventional fire devices/non-addressable unit.

- Secure and speedy communication.

- Monitored cable.

- Electronically addressed.

- LED status indicator.

- Ideal for integrating Sprinkler Zone Valve and Flow Switches.

Thông số kỹ thuật

- Protection rating: IP32.

- Operating voltage: 24VDC Loop voltage.

- Power Supply: 24VDC.

- Operating Current: Monitoring current 0.5mA/ Action Current: 5mA.

- Operating temperature: -10°C to +50°C.

- Relative humidity: 95%.

- Capability: 15 conventional detector (AEOL); 25 detectors (EOLR).

- End of Line: 4.7KΩ or AEOL.

- Application: Indoor use.

- Visual Indicator: LED, steady red when in alarm state, 3 sec interval blinking at normal state; Yellow (fault).

- Material and colour: ABS, off-white.

- Wiring: 2 pair non polarized.

- Dimensions: 120 x80 x40 mm.

- Bảo hành: 12 tháng.
