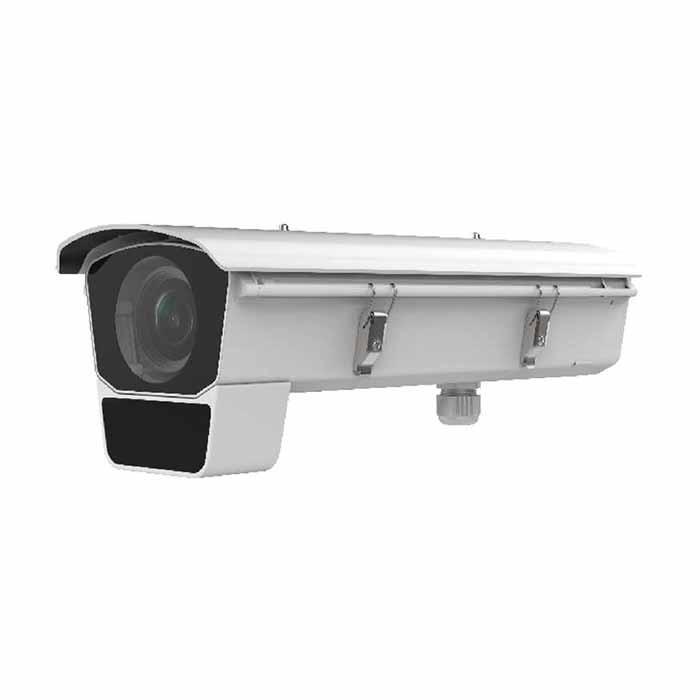

Camera IP nhận diện biển số xe HIKVISION iDS-2CD7026G0/EP-IHSY (3.8-16 mm)
- Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính zoom: 3.8 to 16 mm.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Tầm quan sát hồng ngoại: 80 mét.
- Hình ảnh màu sắc ở môi trường ánh sáng yếu với công nghệ DarkFighter.
- Chống ngược sáng thực 140dB.
- Hỗ trợ BLC, HLC, 3D DNR, Defog, EIS, chống cong ảnh.
- Tích hợp khe cắm thẻ nhớ micro SD/SDHC/SDXC, lên đến 256 GB.
- Tính năng thông minh (Sử dụng thuật toán Deep Learning): Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
- Nhận diện biển số xe, thuộc tính xe (loại xe, màu xe,…).
- Chống ăn mòn NEMA 4X (NEMA 250-2018).
- Tiêu chuẩn chống bụi nước: IP66 (IEC 60529-2013).
- Tiêu chuẩn chống va đập: IK10 (IEC 62262:2002).
Đặc tính kỹ thuật
| Model | iDS-2CD7026G0/EP-IHSY |
| Camera | |
| Image Sensor | 1/1.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.4, AGC ON); B/W: 0.002 Lux @ (F1.4, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| WDR | 140 dB |
| IR Range | Up to 80 m |
| Smart Supplement Light | Yes |
| Lens | |
| Lens Type & FOV | 3.8 to 16 mm, horizontal FOV: 109.1° to 29.6°, vertical FOV: 61.3° to 16.8°, diagonal FOV: 125.1° to 33.9° |
| Aperture | F1.4 |
| Blue Glass Module | Blue glass module to reduce ghost phenomenon |
| ABF | Yes |
| P-Iris | Yes |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Type | Mono sound |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Image | |
| Smart IR | The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure |
| Day/Night Switch | Day, Night, Auto, Schedule, Triggered by Alarm In, Triggered by Video |
| Target Cropping | Yes |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Interface | |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| Audio | 1 input (line in), 1 output (line out), 3.5 mm connector, 2 channels |
| RS-485 | 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Video Output | 1 Vp-p Composite Output(75 Ω/CVBS) (For debugging only) |
| Communication | 1 RJ45 100M/1000M self-adaptive Ethernet port |
| Heater | Yes |
| Hardware Reset | Yes |
| Smart Feature-Set | |
| Basic Event | Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection |
| Counting | Yes |
| Premier Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc |
| Road Traffic and Vehicle Detection | Blocklist and allowlist: up to 10000 records Captures vehicle that has no license plate Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) |
| General | |
| General Function | Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
| Power Supply | 24 VDC ± 20%, three-core terminal block, reverse polarity protection 24 VAC ± 20%, three-core terminal block, reverse polarity protection PoE: 802.3bt, Type3, Class 5 |
| Startup and Operating Conditions | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
| Material | Aluminum alloy body, PP sun shield, PC front panel |
| Protection | IP66 |
| Dimensions | 465.3 × 169.2 ×164.7 mm |
| Weight | 3800 g |
- Bảo hành: 24 tháng.
