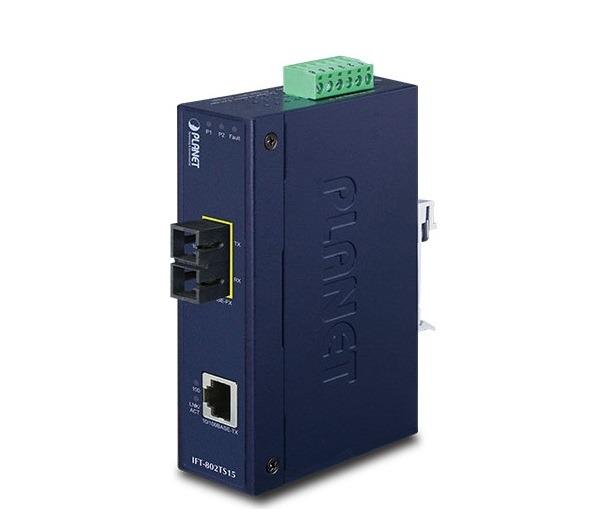

10/100Base-TX to 100Base-FX Industrial Media Converter PLANET IFT-802TS15
Interface
- 1-port 10/100Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function
- 1 100Base-FX SC interface, providing long distance for 15km
Industrial Conformance
- 12V to 48V DC, redundant power with polarity reverse protect function
- Operating temperature: -40 to 75°C
- IP30 metal case
- Relay alarm for port breakdown
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Layer 2 Features
- Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
- Auto-MDI / MDI-X detection and auto negotiation in half-duplex / full-duplex modes for 10 /100Base-TX RJ-45 port
- Store-and-Forward Switching Architecture
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Supports packet size of up to 1522bytes
- CSMA/CD Protocol
- Automatic source address learning and aging
Specifications
| Hardware | |
| 10/100Base-TX Port | 1 RJ-45 auto-MDI / MDI-X port |
| 100Base-FX Port | 1 SC interface |
| Fiber Port Type | SC / single-mode |
| Cable Distance | 15km |
| Optical Frequency | 1310nm |
| Launch Power | Max: 0 dBm Min: -20 dBm |
| Receive Sensitivity | -32 dBm |
| Maximum Input Power | 0 dBm |
| Dimensions (W x D x H) | 135 x 85 x 32 mm |
| Weight | 430g |
| Installation | DIN rail kit and wall mount ear |
| Maximum Frame Size | 1522bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP-30 slim type metal case |
| Power Input | 12 to 48V DC redundant power with polarity reverse protection function |
| Power Consumption | 3 watts/ 10BTU (maximum) |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Speed | Twisted-pair: 10/20Mbps for half / full-duplex 100/200Mbps for half / full duplex Fiber-optic: 200Mbps for full-duplex |
| Standards Conformance | |
| Emissions | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x flow control and back pressure |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Operating Humidity | 5~95% non-condensing |
| Storage Temperature | -40~85 degrees C |
| Storage Humidity | 5~95% non-condensing |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
