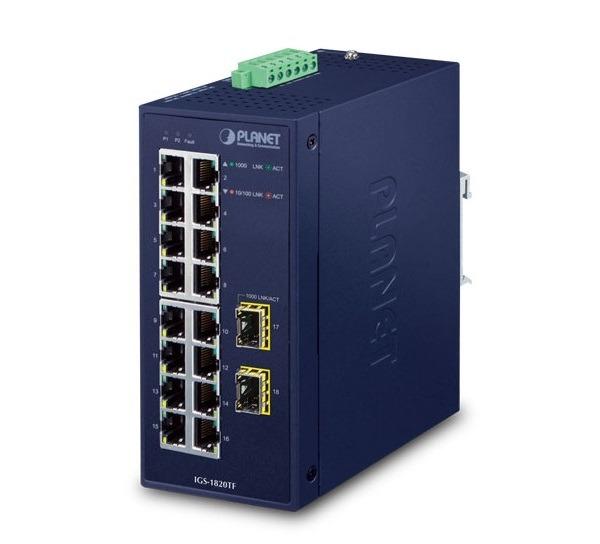

16-Port 10/100/1000T + 2-Port 1000X SFP Switch PLANET IGS-1820TF
Physical Port
- 16 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X function
- 2 SFP interfaces, supporting 1000BASE-X SFP transceiver
Layer 2 Features
- Supports auto-negotiation and 10/100/1000Mbps half/full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.1p CoS
- Supports 8K MAC address
- Automatic address learning and address aging
Industrial Case and Installation
- IP30 metal case
- DIN-rail and wall-mount designs
- 12 to 48V DC, redundant power with reverse polarity protection
- 24V AC power input
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Specifications
| Hardware | |
| Gigabit Ethernet Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Gigabit SFP Slots | 2 1000BASE-SX/LX/BX SFP interfaces |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps (non-blocking) |
| Throughput (packet per second) | 26.79Mpps@ 64 bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4.1Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10Kbytes |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input - Pin 1/2 for Power 1 - Pin 3/4 for fault alarm - Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) | 66 x 107 x 152 mm |
| Weight | 745g |
| Power Requirements | Dual 12~48V DC 24V AC |
| Power Consumption | DC input: Max. 3.4 watts/11.6BTU (System on) Max. 11.1watts/37.9BTU (Full loading) AC input: Max. 6 watts/20.5BTU (System on) Max. 15 watts/51.2BTU (Full loading) |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
