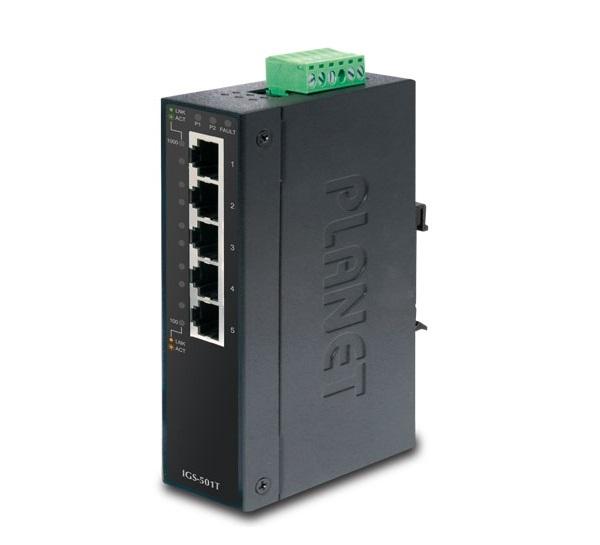

5-Port 10/100/1000T Gigabit Ethernet Switch PLANET IGS-501T
Physical Port
- 5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function
Layer 2 Features
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 2K absolute MAC addresses
- 1M bits on-chip buffer memory
- 9K Jumbo packet size support
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case / Installation
- IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
- Supports EFT protection 6000V DC for power line
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Specifications
| Hardware | |
| Hardware Version | 4 |
| Copper Ports | 5 x 10/100/1000Base-T RJ45 TP auto-MDI/MDI-X, auto-negotiation |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| LED | 3 x LED for system and power: Green: DC Power 1 Green: DC Power 2 Green: Power Fault 2 x LED for each copper port Green: 1000Mbps LNK/ACT Orange:10/100Mbps LNK/ACT |
| ESD Protection | 6KV |
| EFT Protection | 6KV |
| Power Requirements | 12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption/ Dissipation | 5.28 watts/18BTU |
| Installation | DIN rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 456g |
| Switch | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps @64bytes |
| Jumbo Frame | 9K |
| Network Cables | 10/100/1000Base-T Cat. 3, 4, 5, 5e, 6 UTP cable [100 meters (max.)] EIA/TIA-568 100-ohm STP [100 meters (max.)] |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% Storage: 5~90% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
