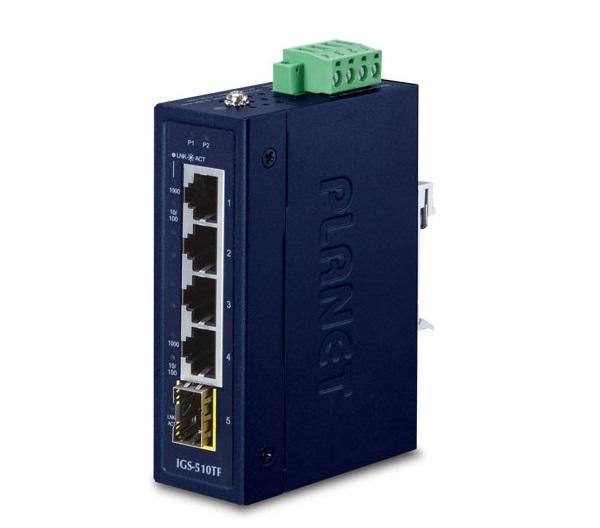

4-Port 10/100/1000T + 1-Port 100/1000X SFP Switch PLANET IGS-510TF
Physical Port
- 4-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
- One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- 9K jumbo packet size
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case and Installation
- IP30 metal case
- DIN rail and wall-mount designs
- 9 to 48VDC and 24VAC power support, redundant power with reverse polarity protection
- Removable terminal block for master and slave power
- Supports 6000 VDC Ethernet ESD protection
- Operating temperature: -40 to 75 degrees C
- Free fall, shock-proof and vibration-proof for industries
Specifications
| Hardware Specifications | |
| Copper Ports | 4-port 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation |
| SFP Slots | 1 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| ESD Protection | 6KV |
| Power Requirements | 9~48V DC, redundant power with reverse polarity protection, 24V AC power support |
| Power Consumption/ Dissipation | 2.8 watts/9.5BTU |
| Installation | DIN-rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 252g |
| Switching | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps@64bytes |
| Jumbo Frame | 9K |
| Network Cables | 10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3az Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90%, Storage: 5~90% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
