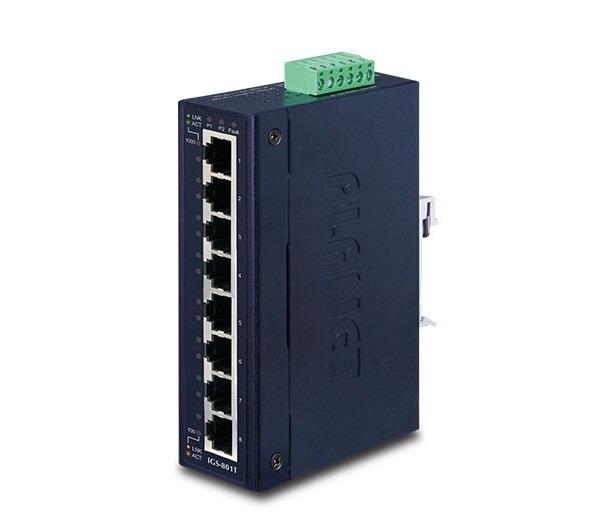

8-Port 10/100/1000T Gigabit Ethernet Switch PLANET IGS-801T
Physical Port
- 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- 4K absolute MAC address and 16Gbps switching fabric support
- 1.5Mbits SRAM packet buffer
- 9K jumbo packet size support
- IEEE 802.1p CoS support
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case and Installation
- IP30 metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
- -40 to 75 degrees C operating temperature
Specifications
| Hardware | |
| 10/100/1000BASE-T Ports | 8 |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 476g |
| Power Requirements | 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption/ Dissipation | 6.72 watts/23BTU |
| Installation | DIN rail kit and wall-mount ear |
| Switching | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K |
| Buffer | 1.5Mbits SRAM packet buffer |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 16Gbps |
| Throughput (packet per second) | 11.9Mpps |
| Jumbo Frame | 9K |
| Network Cables | 10/100/1000BASE-T: Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
