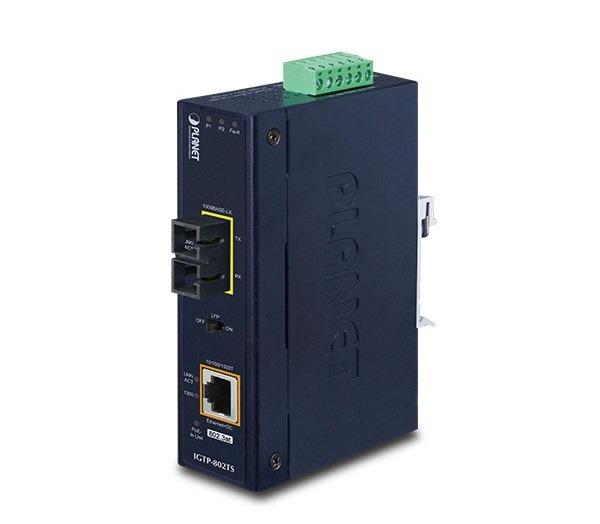

1000BASE-X to 10/100/1000BASE-T PoE+ Media Converter PLANET IGTP-802TS
Physical Port
- 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af /802.3at PoE+ Injector
- 1 1000BASE-SX/LX SC Fiber interface
Power over Ethernet
- Complies with IEEE 802.3at/af PoE Plus end-span PSE
- 1 IEEE 802.3at/af device powered
- Supports PoE Power up to 30.8 watts for PoE port
- Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
- Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
- Remote power feeding up to 100m
- IEEE 802.3at/af splitter devices compatible
Layer 2 Features
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Industrial Case and Installation
- IP30 metal case
- DIN-rail or wall-mount design
- 12 ~ 48V DC/24V AC redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
- Supports 6000 VDC Ethernet ESD protection
- Operating temperature: -40 to 75 degrees C
Specifications
| Ethernet Interface | |
| Copper | 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| 1000BASE-X Fiber-optic Connector Type | SC |
| Fiber Cable | Single-mode: 9/125μm optic fiber |
| Fiber Cable Distance | 10km |
| Fiber Optical Frequency | 1310nm |
| Launch Power | Max. -3dBm Min. -9.5dBm |
| Receive Sensitivity | -14.4dBm |
| Maximum Input Power | -20dBm |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| PoE Power Output | 52V DC: 15.4 watts 52V DC: 30 watts |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 30 watts |
| Hardware | |
| Speed | Twisted-pair: 10/20Mbps for half/full duplex 100/200Mbps for half/full duplex 1000/2000Mbps for full duplex Fiber Optic: 200Mbps / 2000Mbps for full duplex |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: Power 1, Power 2 and Fault LED (Green) Fiber 1000BASE-X: LNK/ACT (Green) TP 10/100/1000BASE-T: LNK/ACT, 1000 (Green) PoE: Power-in-use (Orange) |
| Dimensions (W x D x H) | 135 x 87 x 32 mm |
| Weight | 510g |
| Unit Input Voltage | 12 ~ 48V DC 24V AC |
| Power Consumption | 24V: 4.3watts/14BTU, 48V: 4.8watts/16BTU (without PoE) 24V: 33watts/112BTU, 48V: 31watts/105BTU (with PoE) |
| Link Fault Passthrough DIP Switch | ON/OFF |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
