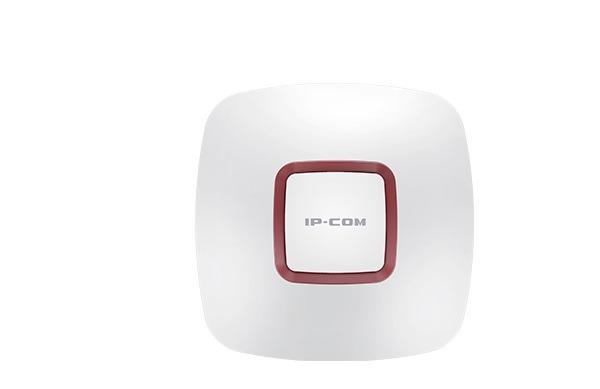

Indoor High Capacity Access Point IP-COM AP365

  • MS 000006050
  • IP-COM
Giá : Liên hệ

Indoor High Capacity Access Point IP-COM AP365

Indoor High Capacity Access Point IP-COM AP365

- Băng tần: 2.4GHz + 5Ghz.

- Tốc độ không dây: 450Mbps (2.4GHz) + 1300Mbps (5Ghz).

- Số lượng SSID: 8 (2.4GHz) + 4 (5Ghz).

- Chế độ hoạt động: Access point, WDS, Client + Access Point.

- Chịu tải: 256 user.

- Tiêu chuẩn: IEEE 802.11n/g/b, 802.11ac/n/a.

- Chuẩn bảo mật không dây: 64/128 WEP, WPA-PSK, WPA, WPA2.

- Kích thước: 234x234x51mm.

Đặc tính kỹ thuật

ModelAP365
Product Information
MountingCeiling and Wall Mount
Dimensions  (W x H x L)234x234x58.4mm
Application ScenariosMedium-Sized Enterprise offices, Shopping Malls, and Restaurants etc
Hardware Specifications
Frequency Range2.4GHz/5GHz
PHY Data Rates1750Mbps
Wi-Fi StandardsIEEE 802.11n/g/b, 802.11ac/n/a
Interfaces2 x 10/100/1000Mbps PoE/LAN port
Buttons1 x RESET
Antennas3x Integrated 2.4GHz Omni-directional, 4dBi gain 3x Integrated 5GHz Omni-directional, 5dBi gain
Max Power Consumption23W
LED indicatorsPWR, 2.4G,5G
Power SupplyDC Input: 51 VDC 1.25A
PoE: 802.3at compliant
Receiver SensitivityMCS0: -88dBm
MCS7: -72dBm
Software Specifications
Operating ModeAP, WDS, Client+AP
WiFi RadioEnable or Disable
BSSIDsUp to 8 (2.4 GHz), Up to 4(5 GHz)
SSID HidingEnable or Disable
User IsolationSupport
Clients LimitConnected user number limitation for every SSID
VLANs802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment
RSSI ThresholdSupport
WMM CapableSupport
Power Save (APSD)Support
Airtime FairnessSupport
Band SteeringSupport
Spectrum AnalysisSupport
Automatic Channel ControlSupport
Adjustable PowerAdjustable step by 1dBm
Access ControlConnect limitation based on mac address
Wireless Security64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
DHCP ServerSupport
VPN Pass-ThroughPPTP,L2TP
Schedule RebootSupport
Network DiagnosesPing
Time&Date SettingSupport
WiFi Client Association StatusSupport
System MonitoringStatus Statistic and Event Log
Backup ConfigurationSupport
Restore ConfigurationSupport
Reset DeviceSupport from Web UI or AP Controller
Username ManagementSupport from Web UI or AP Controller
Reboot DeviceSupport from Web UI or AP Controller
Firmware UpgradeSupport from Web UI or AP Controller
Centralized ManagementManaged by AC2000, AC3000
Working Environment
Operating Temperature-10℃~45℃
Storage Temperature-30℃~70℃
Operating Humidity10%-90% (non-condensing)
Storage Humidity10%-90%  (non-condensing)
Default Login IP192.168.0.254
Default User NameAdmin
Default PasswordAdmin
CertificationsFCC/CE/RoHS

- Bảo hành: 24 tháng.
