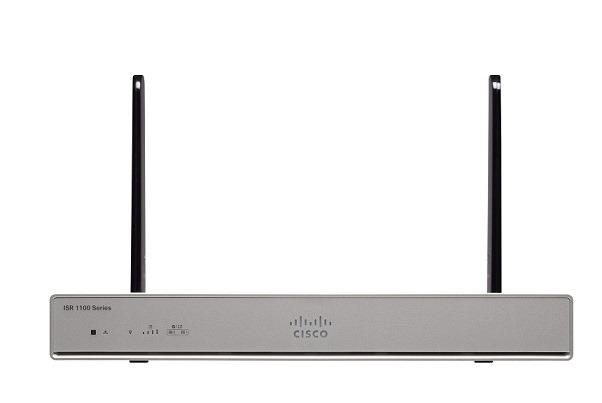

Integrated Services Routers CISCO C1111-8P
- CISCO C1111-8P is one of the Cisco 1000 Series Integrated Services Routers. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices.
- The C1111-8P is the ISR 1100 8-Ports Dual GE WAN Ethernet Router, delivering 1 WAN port and 8GE LAN ports.
- Integrated Micro USB console.
Specifications
| Model | C1111-8P |
| WAN | 1 ports Gigabit Ethernet (GE) |
| GE/SFP combo: 1-port | |
| LAN switch | 8-port GE |
| 4-port PoE or PoE+ | |
| Integrated Micro USB console | Yes |
| Micro-USB port (reserved) | Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0) |
| WLAN interfaces | - Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and - 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO). - 802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points. - Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1000 Series (similar to 1815i) to be deployed on networks without a physical controller. |
| Maximum clients | Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. Option to select 8.8 CAPWAP WLC image. |
| Authentication and security | - AES for Wi-Fi Protected Access 2 (WPA2). - 802.1X, RADIUS AAA. - 802.11r and 802.11i. |
| 802.11ac | - 2x2 SU-MIMO/MU-MIMO with two spatial streams. - Maximal Ratio Combining (MRC). - 20-, 40-, and 80-MHz channels. - PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). - 802.11 Dynamic Frequency Selection (DFS). - Cyclic Shift Diversity (CSD) support |
| Software | - Cisco IOS Software feature set: Universal Cisco IOS XE 16.6.1 Software image or later. C1112, C1113, and C1101 models support starting with IOS XE 16.8.1 Software image or later. C1118, C1111X-8P and C1109 models support with IOS XE 16.9.1 Software image or later. - Cisco IOS Software feature set: C1120 and C1160 models Universal Cisco IOS XE 16.11.1 Software image or later. - Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (migration to 8.8 starting March, 2019 and 8.8 for 1101 and 1109 Models) MR1 or later. |
| Serial WAN interface and protocol | - Support for both synchronous and bisync modes. - Synchronous maximum speed of up to 8 Mbps. - Support for bisync modes. - Support for network clock synchronization. - EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
| Inline PoE | Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+ |
| External power supply | - AC input voltage: Universal 100 to 240 VAC. - Frequency: 50 to 60 Hz. - Maximum output power: 66W (default). - Output voltages: 12 VDC. - Optional PoE and PoE+: Single 150W power supply required - External output voltage: 48 VDC |
| USB 3.0 | - USB devices supported: + USB eTokens and USB flash memory - Devices USB 3.0 supports to be connected externally |
| LEDs | - WWAN (green/amber). - SIM status (green/amber). - Received signal strength indication (RSSI) bar (green). - 3G/LTE service (green/amber). - GPS (green/amber). - Speed and link for Gigabit Ethernet WAN port (green). - Speed and link for all Fast Ethernet LAN ports (green). |
| Dimensions (H x W x D) | 44 x 323 x 244 mm (includes rubber feet on LTE models) 42 x 323 x 230mm (includes rubber feet on non-LTE models) |
| Standard safety certifications | - UL 60950-1.and EN 60950-1. - CAN/CSA C22.2 No. 60950-1. - CB to IEC 60950-1, 2 nd edition with all group differences and national deviations. |
| EMC emissions | EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1 |
| EMC immunity | EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386 |
| Radio immunity | EN301 489-1, EN 301 489-7, and EN301 489-24 |
| Cellular radio | EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13 |
| Environmental operating range | - Nonoperating temperature: -4° to 149°F (-20° to 65°C). - Nonoperating humidity: 5% to 95% relative humidity (noncondensing). - Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). - Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). C1109-2PLTE support 32° to 122°F (0° to 50°C). C1109-4PLTE2P and C1109-4PLTE2PW models support -4° to 131°F (-20° to 55°C). - Operating humidity: 10% to 85% relative humidity (noncondensing). - Operating altitude: 0 to 10,000 ft (0 to 3000 m at 30°C). Operating altitude: 0 to 10,000 ft (0 to 3000 m at 35°C for C1109-2PLTE models). Operating altitude: 0 to 10,000 ft (0 to 3000 m at 40°C for C1109-4PLTE2P and C1109-4PLTE2PW models) |
- Bảo hành: 12 tháng.
