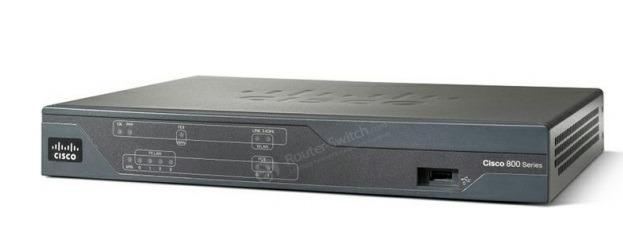

Integrated Services Routers CISCO C888-K9

Integrated Services Routers CISCO C888-K9

  • MS 000009422
  • CISCO
Giá : Liên hệ

Integrated Services Routers CISCO C888-K9

Integrated Services Routers CISCO C888-K9

- CISCO C888-K9 is one of Cisco 880 Series Integrated Services Routers.

- The Cisco C888-K9 Integrated Services Router offers broadband speeds and simplified management to small businesses, enterprise small branches, and teleworker.

- Rack Units: 1 RU.

- WAN Ports: 1 x 10Base-T/100Base-TX - RJ-45.

- LAN Ports: 4 x 10/100 Mbps fast Ethernet managed switch ports with optional Power over Ethernet (PoE) on two switch ports.

- Management Ports: 1 x console - RJ-45.

- USB: 1 x 4 PIN USB Type A.

- DRAM: 256 MB (installed)/ 768 MB (max) - DDR2 SDRAM.

- Flash Memory: 128 MB.

- Dimensions (H x W x D): 44 x 325 x 249 mm (without rubber feet).

Specifications

ModelC888-K9
Default and maximum flash memory- 128 MB on Cisco 880 Series data, embedded 3G Wireless WAN (WWAN), and Cisco Unified Border Element models
- 256MB
WAN- Fast Ethernet
-  Multimode VDSL2 and ADSl2/2+ over ISDN with ISDN backup
-  Multimode VDSL2 and ADSl2/2+ over basic telephone service
-  ADSL2/2+ over ISDN with ISDN backup
-  ADSL2/2+ over basic telephone service with ISDN backup
-  VDSL2 over basic telephone service with ISDN backup
-  Multimode G.SHDSL (2- and 4-wire support) with ISDN backup
-  Fast Ethernet and 3G WAN for Code Division Multiple Access (CDMA) and High-Speed Downlink Packet Access (HSDPA)
LAN switchManaged 4-port 10/100BASE-T with autosensing Media Device In/Media Device Cross-Over (MDI/MDX) for auto crossover
Standard 802.11g/n access point based on IEEE 802.11n draft 2.0 standardOptional on all models
Console or auxiliary portRJ-45
One USB 1.1 port for advanced security features such as security tokens or USB flash memoryOne USB 1.1 port on Cisco 880 Series Routers
-  USB devices supported:
   +  USB eTokens
   +  USB flash memory
External power supplyUniversal 100 to 240 VAC input; 60W, 12 VDC output
Dimensions (H x W x D)48 x 325 x 249 mm (includes rubber feet)
44 x 325 x 249 mm (without rubber feet)
Weight5.5 lb (2.5 kg) maximum
PowerProduct power specifications:
-  AC input voltage: 100 to 240 VAC
-  Frequency: 50 to 60 Hz
-  Maximum output power: 60W
-  Output voltages: 12 VDC
Optional internal PoE with external adapter:
-  Maximum output power: 80W
-  External output voltage: 48 VDC
Approvals and complianceEmissions:
-  47 CFR Part 15: 2006
-  CISPR22: 2005
-  EN300386: V1.3.3: 2005
-  EN55022: 2006
-  EN61000-3-2: 2000 [Inc amd 1 and 2]
-  EN61000-3-3: 1995 [+ amd 1: 2001]
-  ICES-003 Issue 4: 2004
-  KN 22: 2005
-  VCCI: V-3/2006.04
Immunity:
-  CISPR24: 1997 [+ amd 1 and 2]
-  EN300386: V1.3.3: 2005
-  EN50082-1: 1992
-  EN50082-1: 1997
-  EN55024: 1998 [+ amd 1 and 2]
-  EN61000-6-1: 2001
The following are supported on teleworker models:
-  AS/NRZ 3548: 1992 Class B
-  CFR 47 Part 15 Class B
-  EN60555-2 Class B
-  EN55022 Class B
-  ICES-003, Issue 2, Class B, April 1997S
Environmental operating range-  Nonoperating temperature: -4 to 149°F (-20 to 65°C)
-  Nonoperating humidity: 5 to 95% relative humidity (noncondensing)
-  Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)
-  Operating temperature
   +  At sea level: 32 to 104°F (0 to 40°C)
   +  Up 10,000 ft: 32 to 77°F (0 to 25°C)
   +  Derating 2.7°F/10,000 ft (1.5°C/1,000 ft)
-  Operating humidity: 10 to 85% relative humidity (noncondensing)
-  Operating altitude: 0 to 10,000 ft (0 to 3000m)

- Bảo hành: 12 tháng.
