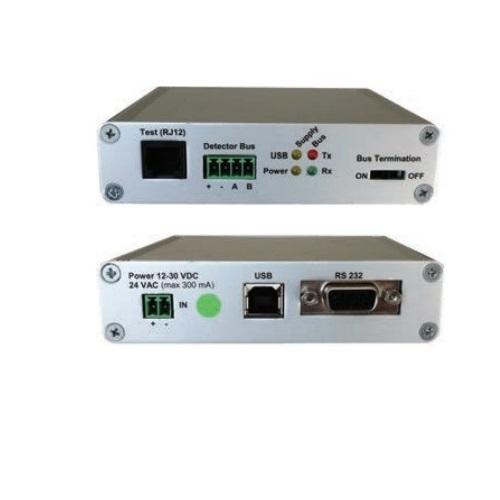

Interface Module HONEYWELL IFM-485-ST (CH19000301)
- The IFM-485-ST is an interface module (RS-485 to RS-232/USB) for bi-directional communication with ADPRO PRO E detectors. Using the IFM-485-ST up to 128 detectors can be configured and monitored from one PC; the detectors are connected via RS-485 and IFM-485-ST via USB or RS-232 to the PC.
- The IFM-485-ST interface module is preconfigured and equipped with the required connectors to be operated with any detector of the PRO E Series.
- The IFM-485-ST offers the following advantages:
+ Remote access to detector.
+ Connection of up to 128 detectors to a data bus (maximum bus length including ''stitches'': 1000 m).
+ Can be used with security and traffic detectors from Xtralis.
+ Very useful for alignment and signal check during setting up and routine maintenance.
+ Features a built-in termination resistor.
Thông số kỹ thuật
| Model | IFM-485-ST |
| Range of operation | Up to 200 m |
| Operating Voltage (External Supply, not included) | 12-30 VDC/ 24 VAC, Max. 300 mA |
| Dimensions | 104.8 x 95.3 x 25.4 mm |
| Shipping weight | 386 g |
| Standards and directives | 2011/65/EU RoHS2 Directive 2014/30/EU EMC Directive EN 50130-4:2011 EN 61000-6-3:2007 + A1:2011 EN 50581:2012 |
- Bảo hành: 12 tháng.
