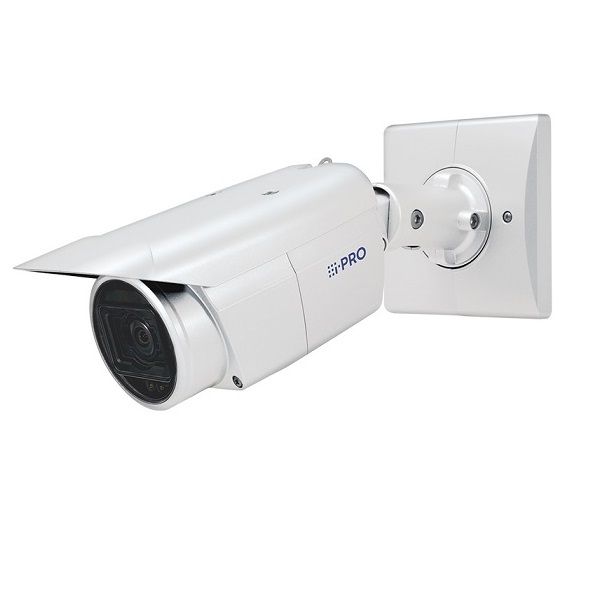

Camera IP hồng ngoại 5.0 Megapixel I-PRO WV-S1552L
- Cảm biến hình ảnh: 1/2.8 type CMOS image sensor.
- Độ phân giải: 5.0 megapixels.
- Độ nhạy sáng tối thiểu:
+ Color: 0.07lx, BW: 0.04lx (50IRE, F1.3, Maximum shutter: Off (1/30s), AGC: 11);
+ BW: 0lx (50IRE, F1.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit);
+ Color: 0.0044 lx, BW: 0.003 lx (50IRE, F1.3, Maximum shutter: max. 16/30s, AGC: 11).
- Hỗ trợ các tính năng camera: BLC, HLC, ICR.
- Hỗ trợ tính năng iA (intelligent Auto).
- Hỗ trợ chuẩn nén H.265 Smart Coding.
- Tầm quan sát hồng ngoại: 40 mét.
- Nhiệt độ hoạt động: -40°C to +60°C.
- Tiêu chuẩn chống bụi cà nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Thông số kỹ thuật
Camera | |
Image Sensor | 1/2.8 type CMOS image sensor |
Minimum Illumination | Color : 0.07 lx, BW : 0.04 lx (50IRE, F1.3, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx (50IRE, F1.3, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.0044 lx, BW : 0.003 lx (50IRE, F1.3, Maximum shutter : max. 16/30s, AGC : 11) |
White Balance | ATW1/ ATW2/ AWC |
Shutter Speed | [30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix |
Intelligent Auto | On / Off |
Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
Dynamic Range | Max.132 dB (Super Dynamic : On, Level : 30 or more, 15fps) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic / Intelligent Auto : Off) |
Fog Compensation | On / Off, The level can be set in the range of 0 to 8 (only when Intelligent auto / auto contrast adjust : Off) |
Maximum Gain | The level can be set in the range of 0 to 11. |
Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1(IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
IR LED Light | High / Middle / Low / Off, Maximum irradiation distance : 40 m {Approx. 131 ft} |
Digital Noise Reduction | The level can be set in the range of 0 to 255. |
Video Motion Detection (VMD) | On / Off, 4 areas available |
Scene Change Detection (SCD) | Scene Change Detection (SCD) |
Intelligent VMD (i-VMD) | Type 7 *Bundled License |
Privacy Zone | On / Off, Up to 8 zones available |
Image Rotation | 0 ° (Off) / 90 °/ 180 ° (Upside-down)/ 270 ° |
Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
Lens | |
Optical zoom | 3.1x (Motorized zoom / Motorized focus) |
Extra zoom | 3.1x - 9.3x (when resolution is 640x360) |
Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
Focal length | 2.9 mm – 9 mm {1/8 inches – 11/32 inches} |
Maximum Aperture Ratio | 1 : 1.3 (WIDE) – 1 : 2.5(TELE) |
Focus range | 0.3 m {11-13/16 inches} – ∞ |
Angular Field of View | [16 : 9 mode ] Horizontal : 34° (TELE) – 106° (WIDE), Vertical : 19° (TELE) – 57° (WIDE) [ 4 : 3 mode ] Horizontal : 34° (TELE) – 106° (WIDE), Vertical : 25° (TELE) – 77° (WIDE |
DORI | |
Detect (25ppm / 8ppf) | Wide: 46.3 m / 151.90 ft, Tele: 200.96 m / 659.32 ft |
Observe (62.5ppm / 19ppf) | Wide: 18.52 m / 60.76 ft, Tele: 80.38 m / 263.72 ft |
Recognize (125ppm / 38ppf) | Wide: 9.26 m / 30.38 ft, Tele: 40.19 m / 131.86 ft |
Identify (250ppm / 76ppf) | Wide: 4.63 m / 15.19 ft, Tele: 20.1 m / 65.93 ft |
Adjusting Angle | |
Wall mounting | Horizontal : ±100 ° (Adjust by vertical (TILT) angle)* Vertical : ±100 ° (Adjust by vertical (TILT) angle)* Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) *You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. |
Browser GUI | |
Camera Control | Brightness, AUX On / Off |
Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Browser | Microsoft Edge, Firefox, Google Chrome |
Network | |
Network IF | 10Base-T / 100Base-TX, RJ45 connector |
Resolution H.265/ H.264/ JPEG (MJPEG) | [16 : 9 mode] 3072 x 1728*7 / 2560 x 1440 / 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180 [ 4 : 3 mode] 3072 x 2304*7 / 2560 x 1920 / 1280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA |
H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
JPEG | [Image Quality] 10 steps |
Smart Coding | GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off |
Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps AAC-LC : 64 kbps / 96 kbps / 128 kbps |
Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS , SRTP, SFTP, MQTT, LLDP |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
ONVIF® Profile | G / S / T |
Alarm | |
Alarm Source | 3 terminals input, VMD alarm, SCD alarm, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output |
Input/Output | |
Monitor Output (for Adjustment) | VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
Audio input | ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V For line input : Input level: Approx. –10 dBV |
Audio Output | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
External I/O Terminals | ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
General | |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Power Source and Power Consumption | DC power supply: DC 12 V 930 mA/Approx. 11.2 W PoE (IEEE802.3af compliant) Device: DC48 V 240 mA/Approx. 11.5 W (Class 0 device) |
Ambient Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F)*12 (Power On range : –30 °C to +60 °C {–22 °F to +140 °F}) |
Ambient Operating Humidity | 10 to 100 % (no condensation) |
Dehumidification Device | Temish element+Fan/Heater |
Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant |
Shock Resistance | IK10 (IEC 62262) |
Wind Resistance | Up to 40 m/s {approx. 89 mph} |
Dimensions | With adapter box : 133 mm (W) x 133 mm (H) x 377 mm (L) {5-1/4 inches(W) x 5-1/4 inches(H) x 14-27/32 inches(L)} Without adapter box : 130 mm (W) x 130 mm (H) x 337 mm (L) {5-1/8 inches(W) x 5-1/8 inches(H) x 13-9/32 inches(L)} |
Mass | With adapter box : 2.2 kg {4.85 lbs} Without adapter box : 1.7 kg {3.75 lbs} |
Finish | Main body : Aluminum die cast and resin, i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Front panel : Polycarbonate resin, Clear |
- Bảo hành: 12 tháng.
