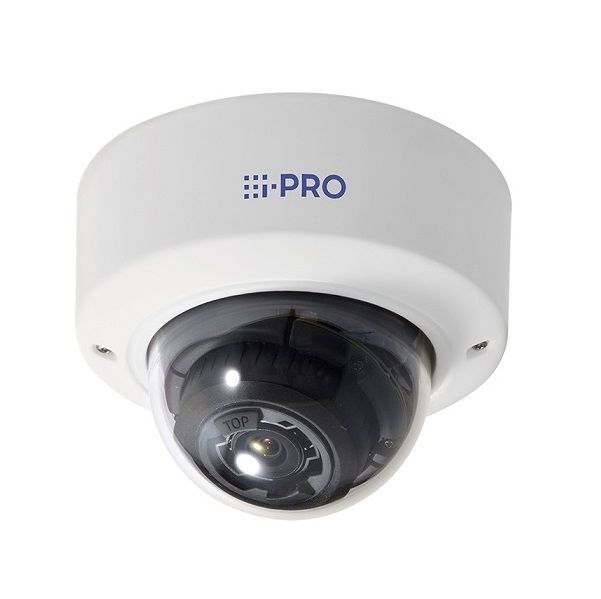

Camera IP Dome hồng ngoại 5.0 Megapixel I-PRO WV-S2252L
- Cảm biến hình ảnh: 1/2.8 type CMOS image sensor.
- Độ phân giải: 5.0 megapixels.
- Độ nhạy sáng tối thiểu:
+ Color: 0.07lx, BW: 0.04lx (50IRE, F1.3, Maximum shutter: Off (1/30s), AGC: 11);
+ BW: 0lx (50IRE, F1.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit);
+ Color: 0.0044 lx, BW: 0.003 lx (50IRE, F1.3, Maximum shutter: max. 16/30s, AGC: 11).
- Hỗ trợ các tính năng camera: BLC, HLC, ICR, AGC.
- Hỗ trợ tính năng iA (intelligent Auto).
- Hỗ trợ chuẩn nén H.265 Smart Coding.
- Tầm quan sát hồng ngoại: 30 mét.
- Nhiệt độ hoạt động: -10°C to +50°C.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color: 0.07 lx, BW: 0.04 lx (50IRE, F1.3, Maximum shutter: Off (1/30s), AGC : 11) BW: 0lx (50IRE, F1.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.0044 lx, BW: 0.003 lx (50IRE, F1.3, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ ATW2/ AWC |
| Shutter Speed | [30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix |
| Intelligent Auto | On / Off |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max. 132 dB (Super Dynamic : On, Level : 30 or more, 15fps) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic / Intelligent Auto : Off) |
| Fog Compensation | On / Off, The level can be set in the range of 0 to 8 (only when Intelligent auto / auto contrast adjust : Off) |
| Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
| IR LED Light | High / Middle / Low / Off, Maximum irradiation distance : 30 m {Approx. 98 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Scene Change Detection (SCD) | On / Off, 1 areas available |
| Intelligent VMD (i-VMD) | Type 7 *Bundled License |
| Privacy Zone | On / Off, Up to 8 zones available |
| Image Rotation | 0 ° (Off) / 90 °/ 180 ° (Upside-down) / 270 ° |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Focus Adjustment | Auto focus |
| Lens | |
| Optical zoom | 3.1x (Motorized zoom / Motorized focus) |
| Extra zoom | 3.1x - 9.3 (when resolution is 640x360) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 2.9 mm - 9 mm {1/8 inches - 11/32 inches} |
| Maximum Aperture Ratio | 1 : 1.3 (WIDE) – 1 : 2.5 (TELE) |
| Focus range | 0.3 m {11-13/16 inches} – ∞ |
| Angular Field of View | [16 : 9 mode] Horizontal : 33° (TELE) – 105° (WIDE), Vertical : 19° (TELE) – 56° (WIDE) [ 4 : 3 mode] Horizontal : 33° (TELE) – 105° (WIDE), Vertical : 25° (TELE) – 76° (WIDE) |
| DORI | |
| Detect (25ppm / 8ppf) | Wide: 47.14 m / 154.67 ft, Tele: 207.42 m / 680.51 ft |
| Observe (62.5ppm / 19ppf) | Wide: 18.86 m / 61.87 ft, Tele: 82.97 m / 272.20 ft |
| Recognize (125ppm / 38ppf) | Wide: 9.43 m / 30.93 ft, Tele: 41.48 m / 136.10 ft |
| Identify (250ppm / 76ppf) | Wide: 4.71 m / 15.47 ft, Tele: 20.74 m / 68.05 ft |
| Adjusting Angle | |
| Adjusting Angle | Horizontal (PAN) angle : ±180°, Vertical (TILT) angle : -30 to +85°, Azimuth (YAW) angle : ±100° |
| Browser GUI | |
| Camera Control | Brightness, AUX On / Off |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser | Microsoft Edge, Firefox, Google Chrome |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/ JPEG (MJPEG) | [16 : 9 mode] 3072 x 1728*7 / 2560 x 1440 / 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180 [ 4 : 3 mode] 3072 x 2304*7 / 2560 x 1920 / 1280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA |
| H.265/H.264 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. Auto VIQS : On / Off |
| Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Audio Transmission Mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS*10, SRTP*10, SFTP*10, MQTT*10, LLDP*10 IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS*10, SRTP*10, SFTP*10, MQTT*10, LLDP |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Secure | FIPS 140-2 level3 |
| SDXC/SDHC/SD Memory Card | H.265 / H.264 recording : Manual REC/Alarm REC (Pre/Post)/Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
| ONVIF® Profile | G / S / T |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, TCP alarm notification output |
| Input/Output | |
| Monitor Output (for Adjustment) | VBS : 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
| Audio input | ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V For line input : Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | DC power supply : DC 12 V 890 mA/Approx. 10.7 W PoE (IEEE802.3af compliant) Device : DC48 V 230 mA/ Approx. 11.0 W (Class 0 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions | ø129.5 mm x 103.5 mm (H) {ø5-1/8 inches x 4-1/16 inches (H)} Dome radius 41.5 mm {1-5/8 inches} |
| Mass (approx.) | Approx. 830 g {1.83 lbs} |
| Finish | Main body: Aluminum die cast, i-PRO white Dome cover: Polycarbonate resin, Clear |
- Bảo hành: 12 tháng.
