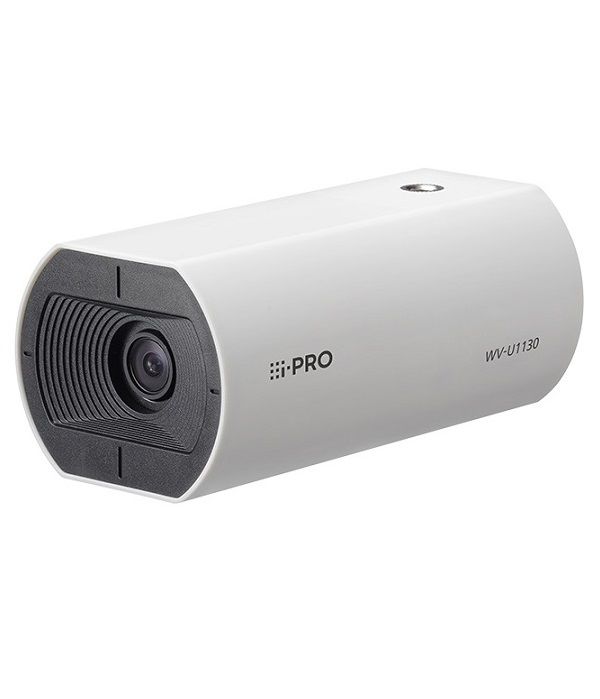

Camera IP 2.0 Megapixel I-PRO WV-U1130
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Tốc độ khung hình: 30 fps.
- Ống kính: 3.2 mm.
- Độ nhạy sáng tối thiểu của camera quan sát: Color: 0.1 lx, BW: 0.04 lx.
- Góc quan sát: 102°.
- Chuẩn nén hình ảnh: H.265.
- Nguồn điện: PoE (IEEE802.3af compliant)/ PoE (Alternative A): 48 VDC: 80 mA/ Approx.3.8 W (Class 2 device).
Đặc tính kỹ thuật
| Model | WV-U1130 |
| Camera | |
| Image Sensor | Approx. 1/3 type CMOS image sensor |
| Minimum Illumination | Color: 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color: 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ ATW2/ AWC |
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max. 120 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off The level can be set in the range of 0 to 31. (only when Super dynamic/ Intelligent Auto: Off) |
| Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| SCD (scene change detection) | On/ Off, 1 area available |
| Privacy Zone | On/ Off (up to 8 zones available) |
| VIQS | On/ Off, Up to 8 zones available |
| Image rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Focal length | 3.2 mm{1/8 inches} |
| Optical zoom | 1x |
| Extra zoom | 1.0x - 1.5x(when resolution is 1280x720) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Angular Field of View | [16 : 9 mode] Horizontal: 102°, Vertical: 55° [ 4 : 3 mode] Horizontal: 83°, Vertical: 61° |
| Maximum Aperture Ratio | 1 : 2.0 |
| Focusing Range | 1 m {39-3/8 inches} – ∞ |
| Browser GUI | |
| Camera Control | Brightness |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265 | [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA |
| Smart Coding | - GOP (Group of pictures) control: On (Frame rate control)/ On (Advanced)/ On (Mid.)/ On (Low)/ Off - AUTO VIQS: On/ Off |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | - H.265 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - Compatible microSDXC/microSDHC Memory Card: microSD speed class6 or higher I-PRO 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, Android terminals |
| Alarm | |
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48V/80 mA, Approx. 3.8W (Class 2 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) {Power On range: 0 °C to +50 °C (+32°F to +122 °F)} |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Dimensions *Installing using the base bracket | 59 mm (W) x 49 mm (H) x 116 mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 4-9/16 inches (D)} (excluding side cover) |
| Mass (approx.) | 150 g {0.33 lbs.} |
| Finish | Main body: PC/ ABS resin, i-PRO white |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
