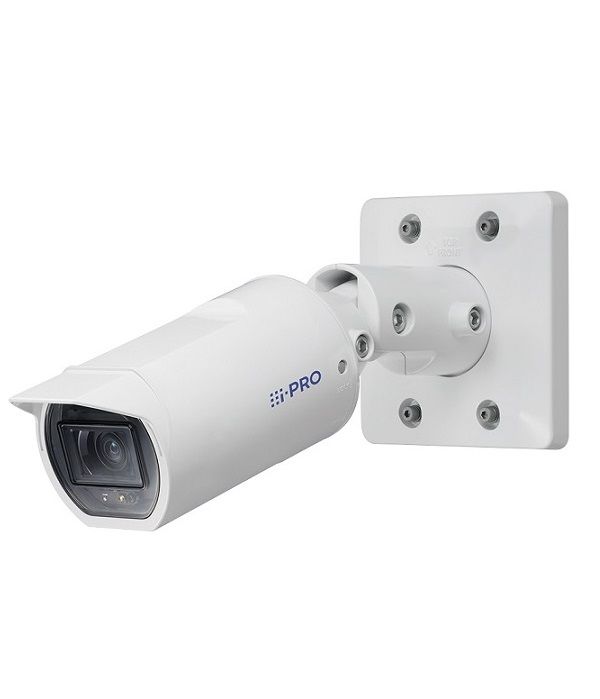

Camera IP hồng ngoại 2.0 Megapixel I-PRO WV-U1532LA
- Camera IP thân ngoài trời Full HD Varifocal Lens.
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Chuẩn nén hình ảnh: H.265, Smart coding.
- Độ phân giải: Full HD 1080p (lên đến 30 khung hình/giây).
- Tiêu cự: 2.9 ~ 7.3 mm.
- Ống kính lấy nét có động cơ và zoom có động cơ 2,5 lần.
- Tầm quan sát hồng ngoại: 30 mét.
- Tầm nhìn ban đêm có màu: 0,006 đến 0,1lx.
- Hỗ trợ tính năng iA (intelligent Auto).
- Hỗ trợ siêu động Super Dynamic 120dB.
- Chế độ hành lang (90 độ hoặc 270 độ khi xoay hình ảnh)
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Cấu hình ONVIF G / S / T.
- Hỗ trợ thẻ nhớ
o microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
o microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
o microSD memory card: 2 GB
Thông số kỹ thuật
| Model | WV-U1532LA |
| Image Sensor | Approx. 1/3 type CMOS image sensor |
| Minimum Illumination | Color: 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx {0 footcandle} (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ ATW2/ AWC |
| Maximum Shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s |
| Intelligent Auto | On / Off |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.120 dB (Super Dynamic: On, Level: 31) |
| Back Light Compensation/High Light Compensation | BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off) |
| Fog Compensation | On / Off, The level can be set in the range of 0 to 8. (only when Intelligent auto / auto contrast adjust: Off) |
| Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off Maximum irradiation distance: 30 m {Approx. 100 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Privacy Zone | On / Off (up to 8 zones available) |
| Image Rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) |
| Focal Length | 2.9 mm – 7.3 mm{1/8inches-9/32inches} |
| Extra optical zoom | 2.5x - 3.8x (when resolution is 1280x720) |
| Angular Field of View | [16 : 9 mode] Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE) [ 4 : 3 mode] Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE) |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0(TELE) |
| Focusing Range | 1 m {39-3/8 inches} – ∞ |
| Ceiling Mounting | Horizontal: ±180 ° (Adjust by horizontal (PAN) angle) Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle) Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) |
| Wall Mounting | Horizontal: ±100 ° (Adjust by vertical (TILT) angle) Vertical : ±100 ° (Adjust by vertical (TILT) angle) Yaw: –190 ° to +100 ° (Adjust by azimuth (YAW) angle) |
| Camera Control | Brightness |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265 | [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA |
| H.265 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off AUTO VIQS: On/ Off |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure Compatible microSDXC/microSDHC Memory Card: Panasonic 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 140 mA, Approx. 6.7 W (Class 0 device) |
| Ambient Operating Temperature | -30 °C to +50 °C (-22 °F to +122 °F) |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Dimensions | 112.5 mm (W) x 112.5 mm (H) x 262 mm (D) |
| Mass (Approx.) | 860g |
| Finish | Main body: Aluminum die cast/ PC resin, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Front cover: Polycarbonate resin, Clear |
- Bảo hành: 12 tháng.
